CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH210WV01A

Detail Information

Interface: 3line SPI + 18bit RGB Operating Temperature: -20~+70 ℃
Storage Temperature: -30~ +80 ℃ Back Light: 4pcs White LED
Weight: TBD G Color: 65k/262k/16.7M
Model Size (W*H*T)mm: 56.18*59.71*2.3 Viewing: Free Viewing Angle
High Light:

2.1" Round TFT LCD Screen

,

CH210WV01A Round TFT LCD Screen

,

480x480 Sunlight Readable Lcd Panel

Product Description

2.1" Round TFT LCD Screen Display Module 480x480 Sunlight Readable

Color Tft Lcd Panel

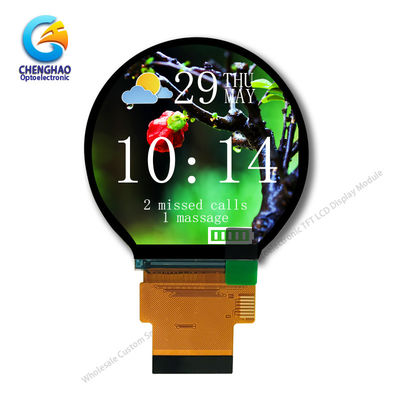

CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 0

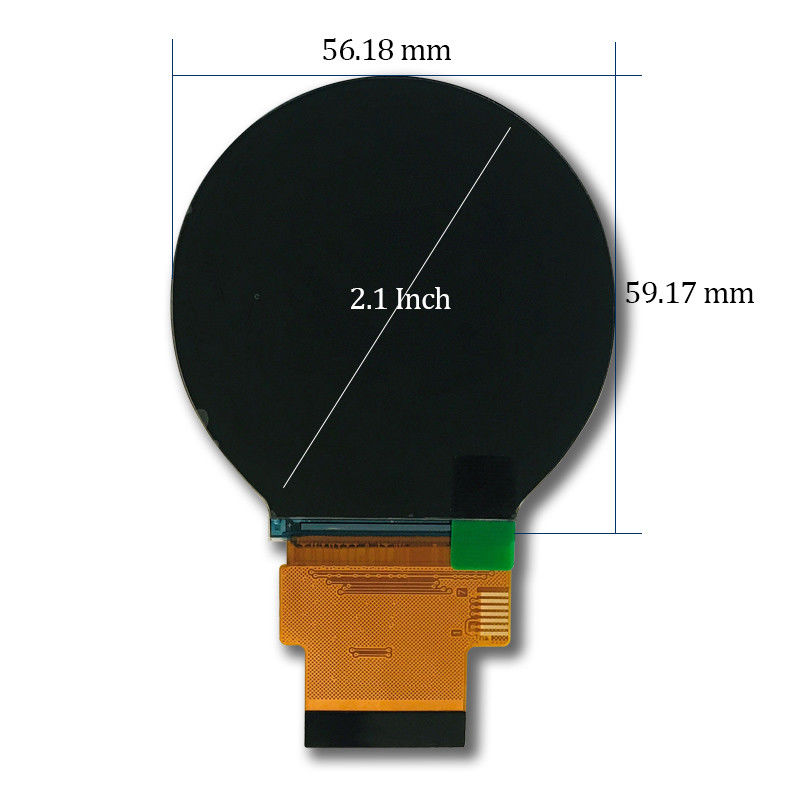

Module size 56.18(W)×59.71(H)×2.3(T) mm
Active area φ53.28 mm
Dotpitch 0.111(W)×0.111(H) mm
Interface 3line SPI + 18bit RGB
Operating temperature -20~70 ℃
Storage temperature -30~ 80 ℃
Back Light 4pcs White LED
Weight TBD g



Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time

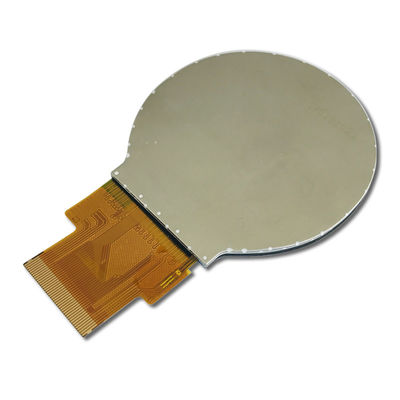

CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 1

ChengHao Display model CH210WV01A is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This

model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capaci

-tive touch panel and FPC.

This TFT LCD has a 2.1 (Round shape) inch diagonally measured active display area with

480*480 resolution.

The driving IC is the ST7701S and can display 65K colors by 3line SPI or R.G.B. signal input.

The driver is mounted on the glass and the interconnection via FPC including components to

drive the display module. Support RGB interface.

RoHS Compliance & Halogen Free.



CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 2

CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 3



CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 4

CH210WV01A 2.1" Round TFT LCD Screen 480x480 Sunlight Readable Lcd Panel 5





About Customization:



FPC can also be customized according to customer requirements, such as modifying back-light

and CTP structure, interface definition, etc.







Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
