NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WV15A-CT

Detail Information

LCD Type: 4.3 Inches Dot Arrangement: 480×(RGB)×800 Dots
Color Filter Array: RGB Vertical Stripe Display Mode: IPS/ Transmissive/ NormallyBlack
Viewing Direction: Free Viewing Angle TFTDriver IC: NT35510
CTPtype: G+F+F Surface Treatment: 6H
CTP Driver IC: GT911
High Light:

NT35510 Industrial Tft Lcd Screen

,

Industrial Tft Lcd Screen CH430WV15A-CT

,

CH430WV15A-CT Sunlight Readable LCD Display

Product Description

9" Industrial Tft Lcd Screen Display Module Sunlight Readable All Viewing

Angle 480*800

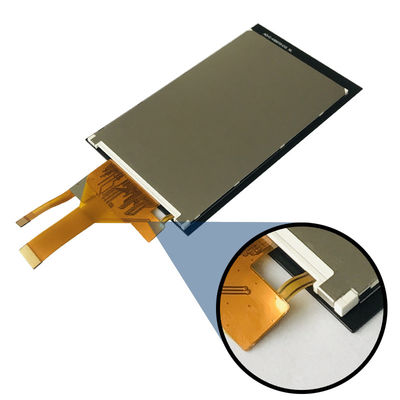

NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 0

LCD type 4.3’’TFT+CTP
Dot arrangement 480×(RGB)×800 dots
Color filter array RGB vertical stripe
Display mode IPS/ Transmissive/ NormallyBlack
Viewing Direction ALL
TFTDriver IC NT35510
CTPtype G+F+F
Surface Treatment 6h
CTP Driver IC GT911
Module size 66.26(W)×113.9(H)×3.35(T) mm
TFT/CTPActive area 56.16(W)×93.6(H) mm
Dotpitch 0.117(W)×0.117(H) mm
Interface 2 lane-MIPI DSI



Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time



NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 1

     ChengHao Display model CH430WV15A-CT is a color active matrix thin film

transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT

as a switching device. This model is composed of a TFT LCD panel, a driving IC,

a high brightness back-light, a capacitive touch panel and FPC.
     This TFT LCD has a 4.3 (vertical Screen)inch diagonally measured active display

area with WVGA (480 horizontal by 800 vertical pixel) resolution.
The driver used for this project is the NT35510 and can display 16M colors by 24

bit R.G.B. signal input. The driver is mounted on the glass and the interconnection

via FPC including components to drive the display module. Support RGB interface.
     In addition, FPC can also be customized according to customer requirements, such

as modifying back-light and CTP structure, interface definition, etc.
     RoHS Compliance & Halogen Free.



NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 2

NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 3



NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 4

NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 5













Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.



NT35510 Industrial Tft Lcd Screen CH430WV15A-CT Sunlight Readable LCD Display 6



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements
