Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 15-20 working days |
| Payment Terms : | T/T | Supply Ability : | 100Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | OEM/ODM |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH900WS01A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| MODEL NO.: | CH900WS01A | Module Type: | 9"TFT |
|---|---|---|---|
| Display Mode: | TN/Transmissive/Normally White | Number Of Dots: | 1024*3(RGB)*600 |
| Viewing Direction: | 12 O'clock | Gray Scale Inversion Direction: | 6 O'clock |
| Module Size: | 211.1(W)*126.5(H)*3.5(T)mm | TFT Active Area: | 196.61(W)*114.15(H)mm |
| TFT Dot Pitch: | 0.192(W)*0.19025(H)mm | ||
| Highlight: | CH900WS01A TFT LCD Display,1024×600 Rgb TFT LCD Display,CH900WS01A Thin Film Transistor Display |
||
Product Description

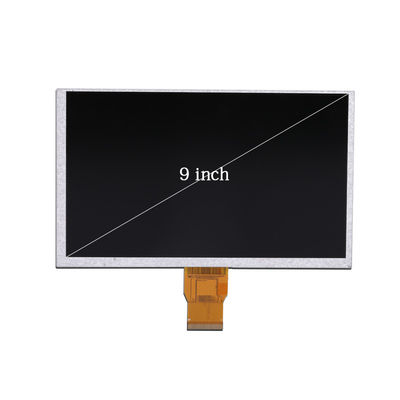

9 Inch Color TFT LCD Display 50 Pin 1024*600 Resolution Rgb Thin Film
Transistor Display
| MODEL NO. | CH900WS01A |
| Module type | 9"TFT |
| Display Mode | TN/Transmissive/Normally white |
| Number of Dots | 1024*3(RGB)*600 |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Module size | 211.1(W)*126.5(H)*3.5(T)mm |
| TFT Active area | 196.61(W)*114.15(H)mm |
| TFT Dot pitch | 0.192(W)*0.19025(H)mm |
ChengHao Display model CH900WS01A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 9 (Horizontal screen) inch diagonally measured active display area with
1024*3(RGB)*600 resolution.
The driver used for this project is the HIMAX or compatible and can display 16M colors by R.G.B.
signal input. The driver is mounted on the glass and the interconnection via FPC including com
-ponents to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
Custom description
FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
