7 Inch IPS Capacitive Touch High Brightness TFT Display Sunlight Readable
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH800FH03A |
|
Detail Information |
|||
| LCD Type: | 10" TFT | Dot Arrangement: | 800(RGB)×1280 Dots |
|---|---|---|---|
| Display Mode: | Transmissive / Normally Black | Viewing Angle: | 85 / 85 / 85 / 85 |
| IC: | JD-9365BC | TFT Size: | 143.2 (W) × 229.2 (H)×2.8 (T) Mm |
| Active Area: | 135.36(W) × 216.576(H) Mm | ||
| High Light: | 10.1" High Brightness TFT Display,500nits High Brightness TFT Display,800x1280 IPS Transmissive Display |
||
Product Description
8" 500Nits High Brightness TFT Display 800x1280 Pixel And IPS
Transmissive Normally Black Display Mode
| MODEL NO. | CH800FH03A |
|
LCD type |
8’’TFT |
| Backlight Type | White LED |
|
Dot arrangement |
800(RGB)×1280dots |
|
Color filter array |
RGB vertical stripe |
|
Display mode |
Transmissive / Normally Black |
| Luminace | 500cd/m2 |
|
Viewing Direction |
85/85/85/85 |
|
Driver IC |
JD9365BC |
|

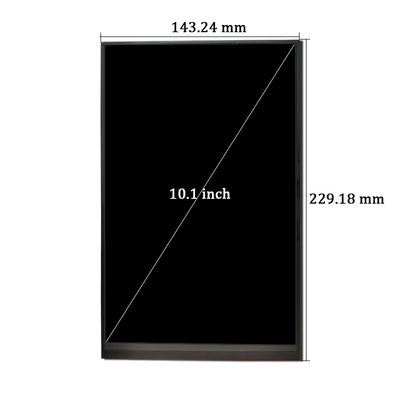

TFT size |
143.24(W)×229.18(H)×2.75(T)mm |
|
Active area |
135.36(W)×216.576(H)mm |
ChengHao Display model CH800FH03A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 8 (16:10) inch diagonally measured active display area with WXGA (800
horizontal by 1280 vertical pixel) resolution.
The driver used for this project is the JD9365BC and can display 16M colors by 24 bit R.G.B. sig

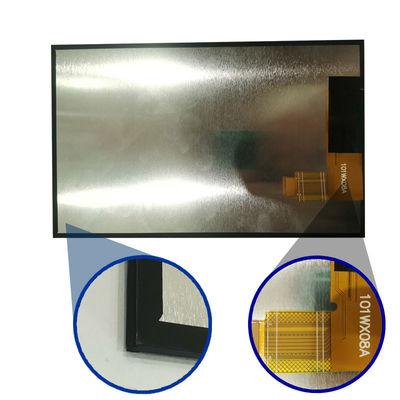

-nal input. The driver is mounted on the glass and the interconnection via FPC including compon
-ents to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
For storage:
In the case of storing for a long period of time for instance, for years for the purpose or
replacement use, the following ways are recommended.
1.Storage in a polyethylene bag with the opening sealed so as not to enter fresh air outside in it .
And with no desiccant.
2. Placing in a dark place where neither exposure to direct sunlight nor light’s keeping the
storage temperature range.
3.Storing with no touch on polarizer surface by the anything else.
It is recommended to store them as they have been contained in the inner container at the
time of delivery from us
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
