IPS Transmissive 350nits Rgb TFT LCD Monitor 1200x1920 Sunlight Readable
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH500WV06A-CTB |
|
Detail Information |
|||
| Module Type: | 5.0 Inch | The Cover Hardness: | 6H |
|---|---|---|---|
| Color: | 16.7 M | Resolution: | 800x480 Pixel |
| REQUIREMENTS ON ENVIRONMENTAL PROTECTION: | ROHS | IC: | GT911 |
| LENS Glass: | 0.7mm | ITO Glass: | 0.55mm |
| Operation Voltage: | 2.8V-3.3V | POLARIZER MODE: | TRANSMISSIVE/POSITIVE |
| High Light: | 5" Wvga Tft Lcd Monitor,GT911 IC Tft Lcd Monitor,I2c CTP TN Transmissive Display |
||
Product Description

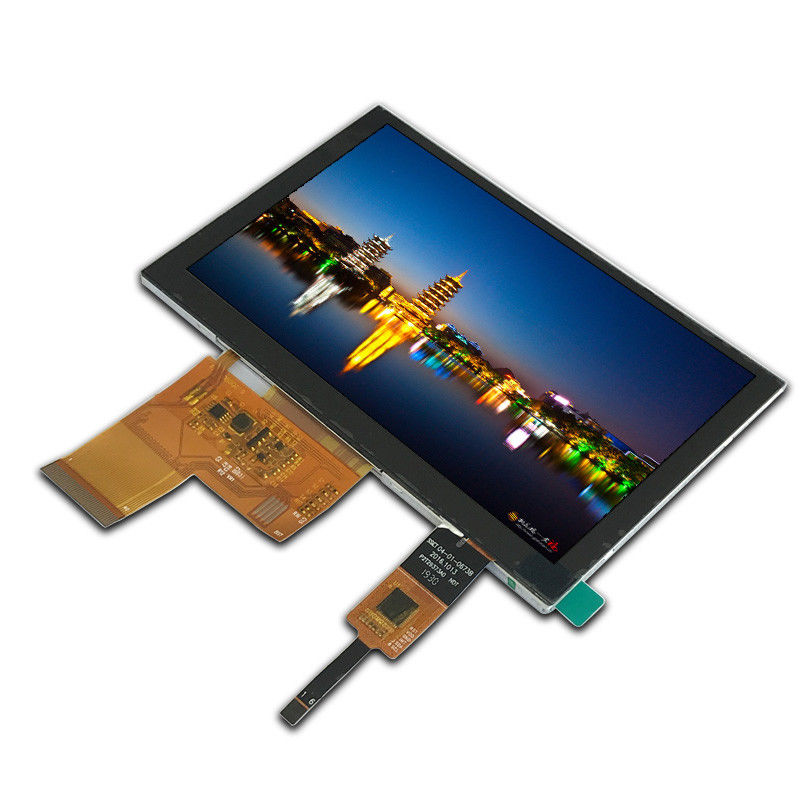

5" Wvga Tft Lcd Color Monitor 12 Clock Normally White TN Transmissive
Display Mode With I2c CTP
MODEL NO. |
CH500WV03A-CTB |
Module type |
5inch |
| LENS Glass | 0.7 mm |
Operation Voltage |
2.8V-3.3 V |
| ITO Glass | 0.55 mm |
STORAGE TEMP |
-30°C~+80°C |
Module size |
120.7(W)*75.8(H)*4.65(T)mm |
TFT Active area |
108(W)*64.8(H)mm |
| POLARIZER MODE | TRANSMISSIVE/POSITIVE |
| REQUIREMENTS ON ENVIRONMENTAL PROTECTION | RoHs |
ALL BENDING RADIU |
> 2mm |
Drive Ic |
gt911 |
ChengHao Display model CH500WV03A-CTB is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model
is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch
panel and FPC.
This TFT LCD has a 5.0 (Landscape screen) inch diagonally measured active display area with
WVGA (800 horizontal by 480 vertical pixel) resolution.
The driver used for this project is the GT911 and can display 16M colors by 24 bit R.G.B. signal
input. The driver is mounted on the glass and the interconnection via FPC including components
to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
