ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH500WV06A-CTB

Detail Information

Module Type: 5.0 Inch Operation Voltage: 2.8V-3.3 V
Transmittance: ≥87% The Cover Hardness: 6H
Connection: Connector Color: 16.7 M
Resolution: 800x480 Display Area: 108*64.8
High Light:

ISO9001 Lcd Touch Display Module

,

800x480 Lcd Touch Display Module

,

40 Pin FPC Tft Lcd Module

Product Description

5inch Tn Lcd Touch Display Module RGB Landscape Screen With 40

Pin FPC And Connector Connection

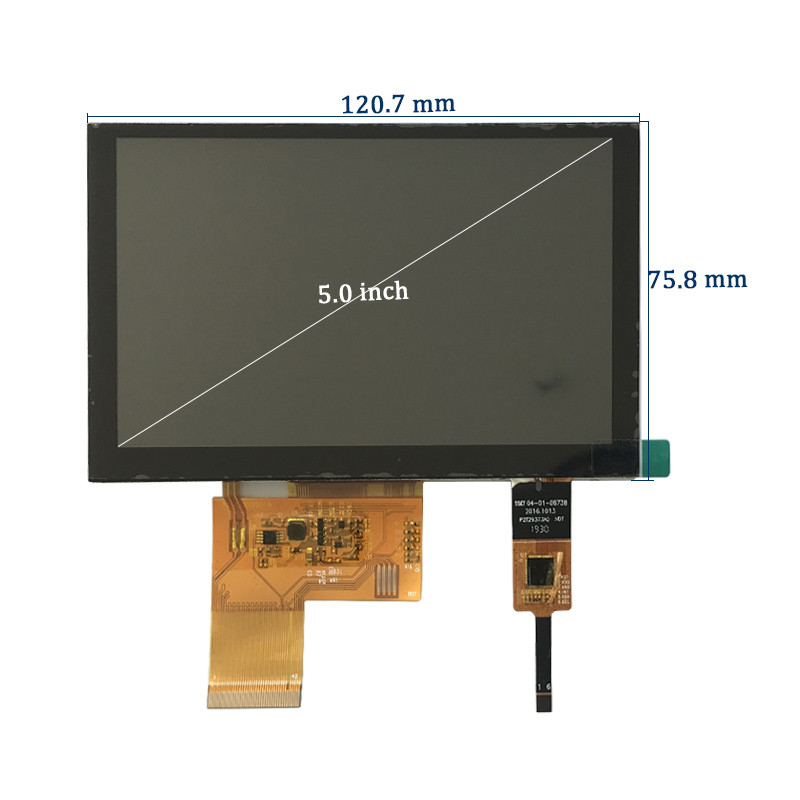

ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 0

MODEL NO. CH500WV06A-CTA
Module type 5.0"TFT + CTP
Display Mode TN/Transmissive/Normally White
Operation Voltage 2.8V-3.3 V
Transmittance ≥87%
STORAGE TEMP -30°C~+80°C
Module size 120.7(W)*75.8(H)*4.65(T)mm
TFT Active area 108(W)*64.8(H)mm
OPERATING TEMP -20°C~+70°C
The cover hardness 6H
ALL BENDING RADIU > 2mm
Drive Ic GT911

ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 1

ChengHao Display model CH500WV03A-CTB is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch

panel and FPC.

This TFT LCD has a 5.0 (Landscape screen) inch diagonally measured active display area with

WVGA (800 horizontal by 480 vertical pixel) resolution.

The driver used for this project is the GT911 and can display 16M colors by 24 bit R.G.B. signal

input. The driver is mounted on the glass and the interconnection via FPC including components

to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 2

ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 3





ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 4



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



ISO9001 800x480 Lcd Touch Display Module RGB 40 Pin FPC Connector 5
