300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH430WQ09A-CTA-PB-2

Detail Information

Module Type: 4.3"TFT+CTP+PCB-2 Display Mode: TN / Transmissive / Normally White
Number Of Dots: 480*272*3(RGB) Viewing Direction: 12 0'clock
TFT Active Area: 95.04(W) * 53.856(H) Mm TFT Interface: MCU
Interface: I2C Luminace: 300 Cd/m2
High Light:

MCU Ctp Small LCD Touch Screen

,

300cd/M2 Small LCD Touch Screen

,

I2C CTP Lcd Touch Screen Monitor

Product Description

4.3 Inch MCU Small LCD Touch Screen Ctp With I2C Interface And

300cd/M2 Luminance

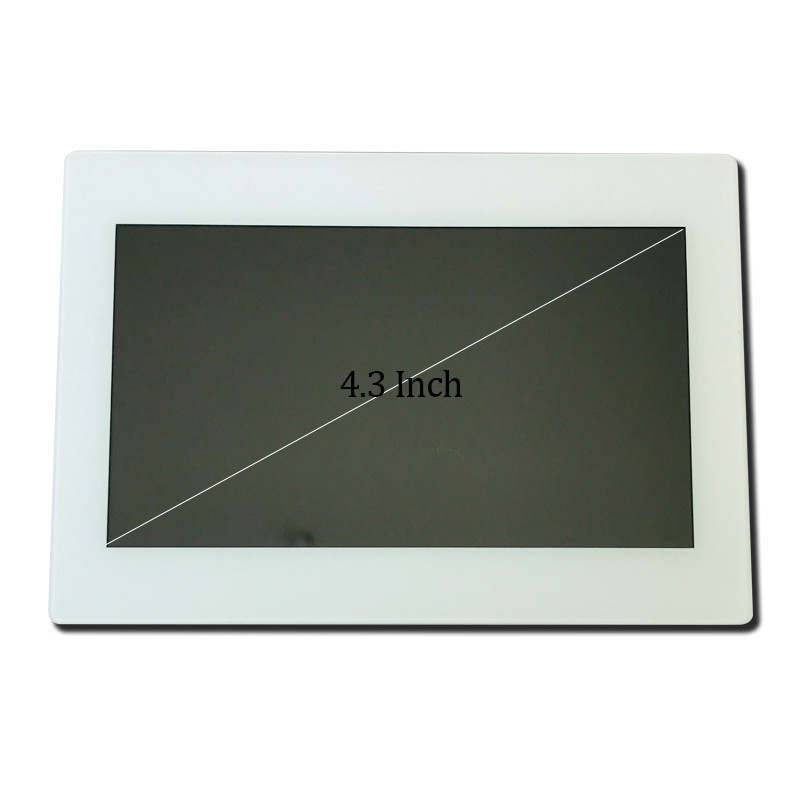

300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 0

MODEL NO. CH430WQ09A-CTA-PB-2
Module type 4.3 Inch :CTP+PCB
Display Mode TN / Transmissive / Normally White
Number of Dots 480*272*3(RGB)
Viewing Direction 12 O’clock
Module size 113.5(W) * 79.58(H) * 8.5(T) mm
TFT Active area 95.04(W) * 53.856(H) mm
TFT Interface MCU
CTP Interface I2C
Luminace 300 cd/m2

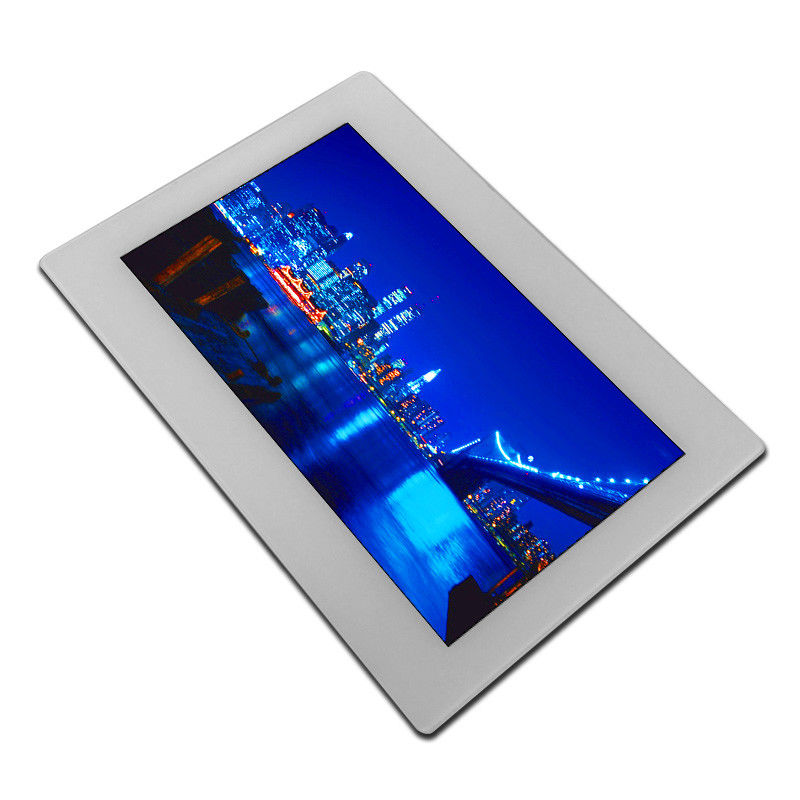

300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 1

ChengHao Display model CH430WQ09A-CTA-PB-2 is a Truly color active matrix thin film

transistor (TFT)liquid crystal display (LCD) that uses amorphous silicon TFT as a switch

-ing device.

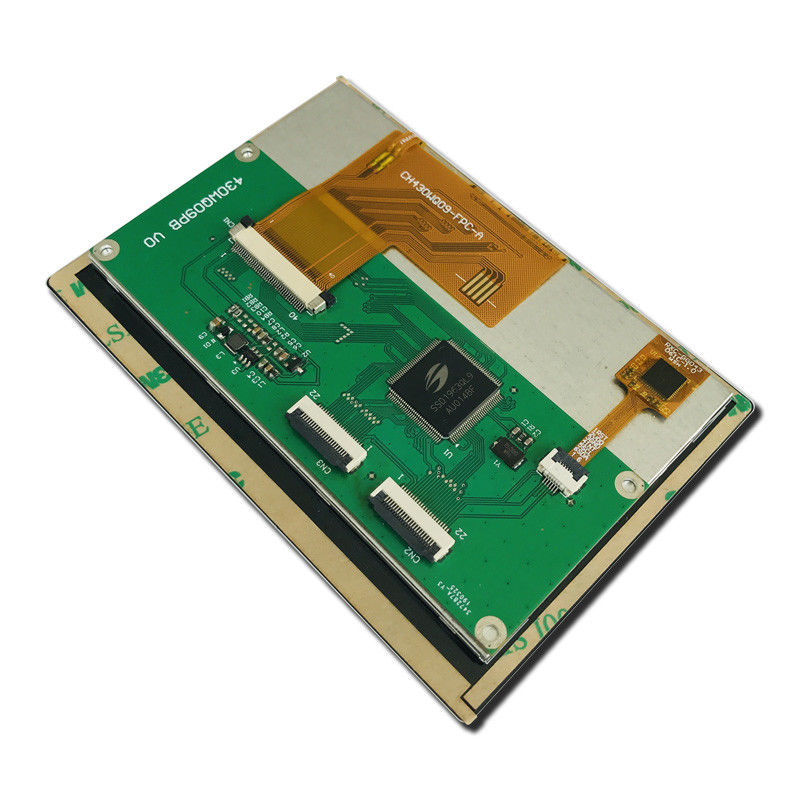

This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light

and FPC.

This TFT LCD has a 4.3 Inch diagonally measured active display area with 480*272 resolu

-tion.

The driver IC is SSD 1963 and can display 16 M colors by R.G.B.signal input. The driver

is mounted on the glass and the interconnection via FPC including components to drive

the display module. Support RGB interface.

This model's operating temp is  -20~+70 ℃ and Is stored in a 30 degree Celsius environment.

In addition, FPC can also be customized according to customer requirements, such as

modifying backlight and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.





300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 2

300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 3





300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 4



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



300cd/M2 MCU CTP Small LCD Touch Screen I2C 4.3 Inch 5
