850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH700WV05A-CT-1

Detail Information

Module Type: 7'' Display Mode: Transmissive/Tn/Normally White
Number Of Dots: 800*480*3(RGB) Module Size: 8.83(T)x183.0(W)x139.0(H) Mm
TFT Active Area: 85.92(H)x154.08(W) Mm Interface: TFT: 24 Bits RGB CTP: I2C
Luminace: 850nits
Highlight:

Pcap TFT LCD Touch Screen

,

850nits TFT LCD Touch Screen

,

ISO9001 Tft Lcd Module

Product Description

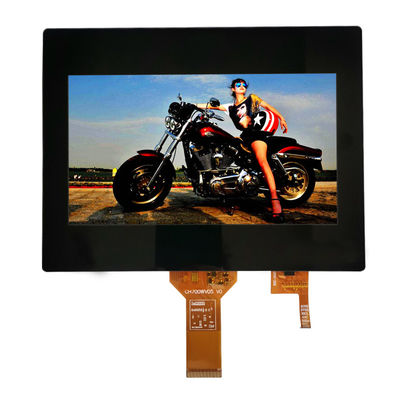

7 Inch Pcap TFT LCD Touch Screen With 12 O'Clock Viewing Angle

And the full range of colors.

850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001 0

MODEL NO. 700WV05A-CT
Module type 7 inches
Display Mode TN / Transmissive
CTP type G+G
Number of Dots 800*480*3(RGB)
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Module size 8.83(T)*183.0(W)*139.0(H) mm
TFT Active area 85.92(H)*154.08(W) mm
TFT Dot pitch 0.1926(W)*0.1790(H) mm
Interface TFT: 24bit RGB      CTP: I2C
Backlight Type White LED
Luminace 850 cd/m2

850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001 1

ChengHao Display model 700WV05A-CT is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This

model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a cap

-acitive touch panel and FPC.

This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA

(800 horizontal by 480 vertical pixel) resolution.

The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B.

signal input.

The driver is mounted on the glass and the interconnection via FPC including components

to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modi

-fying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.





850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001 2

850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001 3





850nits Pcap TFT LCD Touch Screen 7 Inch 12 O'Clock ISO9001 4



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive
