3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH700WV05A-CTP |
|
Detail Information |
|||
| Module Type: | 7"TFT | Display Mode: | TN/Transmissive/Normally White |
|---|---|---|---|
| Number Of Dots: | 800*3(RGB)*480 | Viewing Direction: | 12 O'clock |
| Module Size: | 183.0(W) * 139.0(H) * 8.83(T) Mm | TFT Active Area: | 154.08(W) * 85.92(H) Mm |
| Interface: | TFT: 24-bit RGB CTP: I2C | Luminace: | 850cd/m2 |
| CTP Type: | G+G | Gray Scale Inversion Direction: | 6 O'clock |
| High Light: | 850cd/M2 TFT LCD Capacitive Touchscreen,TFT LCD Capacitive Touchscreen 800x480,CTP I2C Tft Lcd Module |
||
Product Description

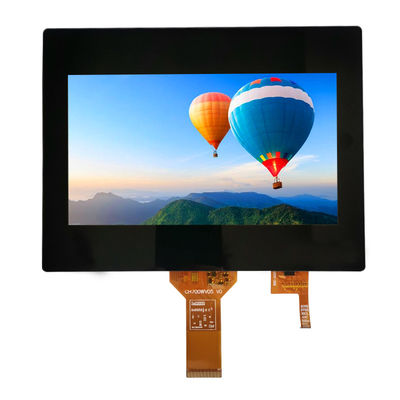

7 Inches TFT LCD Capacitive Touchscreen Modules 800*480 Resolution
And 850 Nits High Brightnes
| MODEL NO. | CH700WV05A-CTP |
| Module type | 7"TFT |
| Display Mode | TN / Transmissive / Normally white |
| CTP type | G+G |
| Number of Dots | 800 * 3(RGB) * 480 |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Module size | 183.0(W) * 139.0(H) * 8.83(T)mm |
| TFT Active area | 154.08(W) * 85.92(H) mm |
| TFT Dot pitch | 0.1926(W) * 0.1790(H) mm |
| Interface | TFT: 24-bit RGB CTP: I2C |
| Backlight Type | White LED |
| Luminace | 850 cd/m2 |
ChengHao Display model CH700WV05A-CT is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed
of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch panel and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA (800 horizon
-tal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal input.
The driver is mounted on the glass and the interconnection via FPC including components to drive the
display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back
-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
