1.5”480x240 Tft Lcd Color Monitor OTA5182A-C2 Rohs Compliant
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH800FH03A-13 |
|
Detail Information |
|||
| Module Type: | 8inches | Display Mode: | IPS/Transmissive |
|---|---|---|---|
| Number Of Dots: | 1200*3*1920(RGB) | Viewing Direction: | 80/80/80/ 80 |
| Module Size: | 114.7 (W) X 184.2 (H) X 2.5 (T) Mm | TFT Active Area: | 107.64 (W) X 172.224 (H) Mm |
| Interface: | 4line MIPI | Luminace: | 350Nits |
| High Light: | IPS Transmissive TFT LCD Monitor,350nits Rgb TFT LCD Monitor,1200x1920 Sunlight Readable LCD Monitor |
||
Product Description

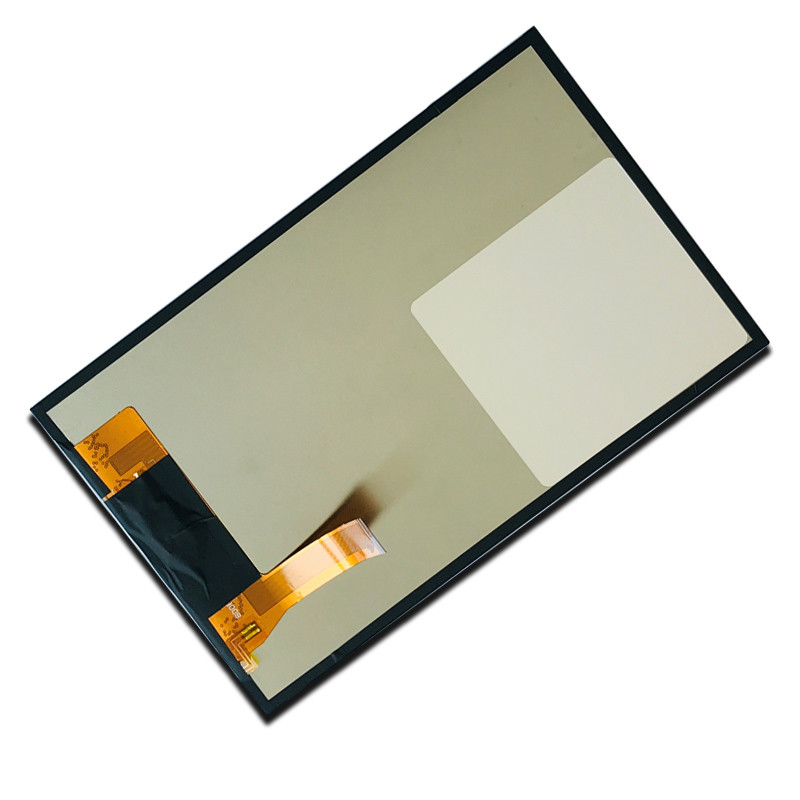

8 Inch Rgb Color TFT LCD Monitor With White LED Backlight Type And
Sunlight Readable
| MODEL NO. | CH800FH03A-13 |
| Module type | 8'' TFT |
| Display Mode | IPS/Normally Black |
| Number of Dots | 1200x1920 |
| Viewing Direction | 80/80/ 80 / 80 |
| Module size | 114.7 (W) x 84.2 (H) x 2.5 (T)mm |
| TFT Active area | 107.64 (W) x 172.224 (H) mm |
| TFT Dot pitch | 0.0897 (W) x 0.0897 (H) mm |
| Interface | 4-line MIPI |
| Backlight Type | White LED |
| Luminace |
350 Nits |
ChengHao Display model CH800FH03A-12 is a Truly color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 8 Inch diagonally measured active display area with 1200*1920 hight reso
-lution.
The driver can display 16.7M colors by 4-lane MIPI R.G.B.signal input. The driver is mounted on
the glass and the interconnection via FPC including components to drive the display module. Sup
-port RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
backlight and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
