Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH390WQ01A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| MODEL NO.: | CH154HV05A-CT | Module Type: | IPS/Transmissive/Normally Black |
|---|---|---|---|
| CTP Type: | G+F | Number Of Dots: | 320*3(RGB)*320 |
| Viewing Direction: | ALL | Module Size: | 40.2(W)*40.5(H)*3.13(T)mm |
| TFT Active Area: | 27.744(W)*27.744(H)mm | Interface: | TFT: SPI CTP:I2C |
| Luminace: | 350cd/m2 | ||
| Highlight: | Transmissive IPS TFT LCD Display,CTP I2C TFT LCD Display,350nits LCD Touch Screen Modules |
||
Product Description
IPS TFT LCD DISPLAY 350Nits Spi Interface Full Viewing Angle Touch
Screen Modules
| MODEL NO. | 154HV05A-CT |
| Module type | 1.54"TFT |
| Display Mode | IPS/Transmissive/Normally Black |
| CTP type | G + F |
| Number of Dots | 320 * 3(RGB) * 320 |
| Viewing Direction | All |
| Module size | 40.2(W) * 40.5(H) * 3.13(T) mm |
| TFT Active area | 27.744(W) * 27.744(H) mm |
| Interface | TFT: SPI CTP: I2C |
| Luminace | 350 cd/m2 |

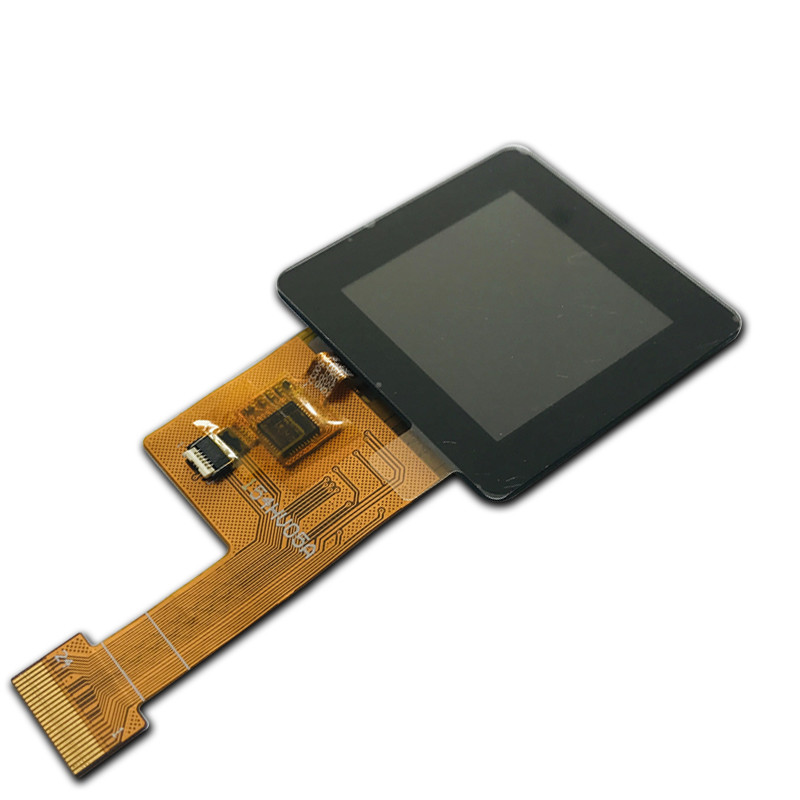

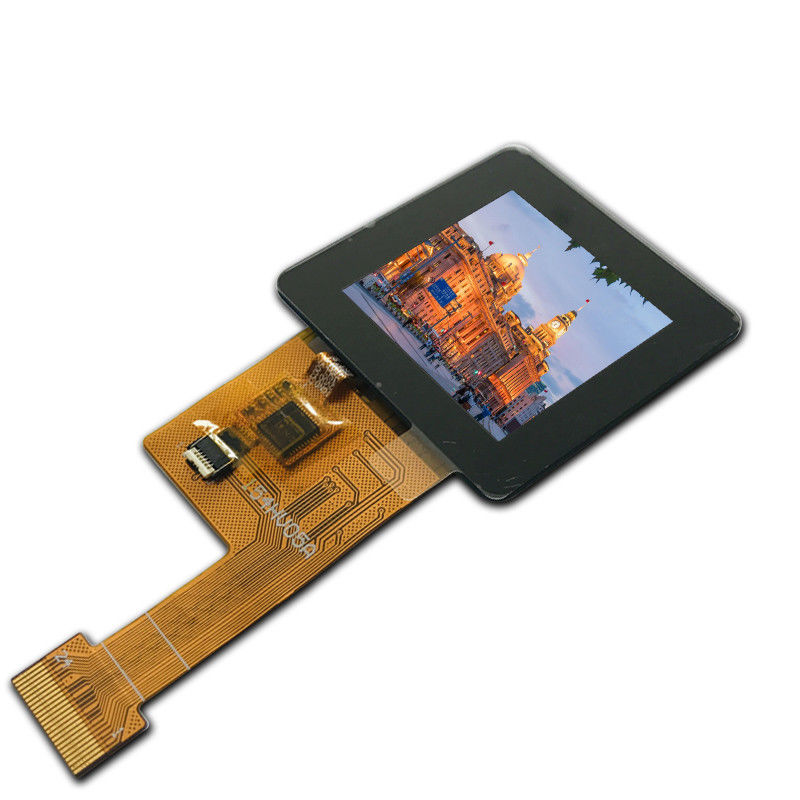

ChengHao Display model 154HV05A-CT is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This mo
-del is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 1.54 (1:1 screen) inch diagonally measured active display area with 320*3
(RGB)*320 resolution.
The driver used for this project is the ST7796S or compatible and can display 65K colors by
R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC inclu
-ding components to drive the display module. Support I2C + 4line SPI interface.
In addition, FPC can also be customized according to customer requirements, such as modify
-ing back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
