Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | 390WQ01A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 3.9inches | Display Mode: | IPS Transmissive Normally Black |
|---|---|---|---|
| Number Of Dots: | 480 * 3 (RGB) * 128 | Viewing Direction: | Free Viewing Angle |
| Module Size: | 105.5(W) * 40.64(H) * 2.95(T) Mm | TFT Active Area: | 95.04(W) * 25.344(H) Mm |
| Interface: | RGB | Luminace: | 500cd/m2 |
| Highlight: | 3.9" Ips TFT LCD Display,500cd/m2 TFT LCD Display,FPC Structure TFT LCD Screen |
||
Product Description

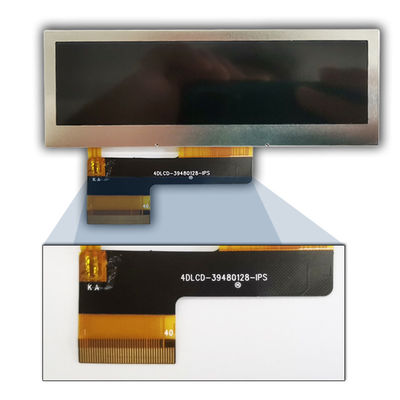

3.9 Inch Ips TFT LCD Display Samll Size High Resolution Free Viewing
Angle screen panel
| MODEL NO. | 390WQ01A |
| Module type | 3.9" |
| Display Mode | IPS Transmissive Normally black |
| Number of Dots | 480 * 3 (RGB) * 128 |
| Viewing Direction | free viewing angle |
| Module size | 105.5(W) * 40.64(H) * 2.95(T) mm |
| TFT Active area | 95.04(W) * 25.344(H) mm |
| Interface | RGB |
| Luminace | 500Nits |
ChengHao Display model CH390WQ01A is a color active matrix thin film transistor (TFT) li
-quid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This mo
-del is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 3.9 (Bar screen) inch diagonally measured active display area with
480*(RGB)*128 resolution.
The driver used for this project is the SC7283 or compatible and can display 16M colors by 24
bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC in
-cluding components to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
