800x480 I2C 250cd/M2 TFT LCD Touch Screen 7" CTP PCB With Drive Board
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH700WV02A-TCP |
|
Detail Information |
|||
| Module Type: | 7Inch | Display Mode: | Transmissive /Normally White/TN |
|---|---|---|---|
| Number Of Dots: | 800*480*3-RGB | Viewing Direction: | 12O'clock |
| Module Size: | 119(H)*7.4(T)*180(W) Mm | TFT Active Area: | 85.9(H)*154.(W) Mm |
| Interface: | TFT:24 Bits RGB CTP:I2C | Luminace: | 200nit |
| High Light: | 200nit TFT LCD Touch Screen,WVGA TFT LCD Touch Screen,CTP I2C LCD Touch Screen Module |
||
Product Description
Full Color Pcap TFT LCD Touch Screen Module Quadratischen
12 O'Clock Angle
| MODEL NO. | CH700WV02A-TCP |
| Module type | 7Inch |
| Display Mode | Transmissive/Normally white/TN |
| CTP type | G+ G |
| Number of Dots | 800*3*480-RGB |
| Viewing Direction | 12O'colock |
| Gray Scale Inversion Direction | 6O'colock |
| Module size | 180*119* 7 mm |
| TFT Active area | 154 * 86 mm |
| TFT Dot pitch | 0.1790 * 0.1926 mm |
| Interface | TFT:24-bits RGB CTP:I2C |
| Backlight Type | White LED |
| Luminace | 200 Nit |

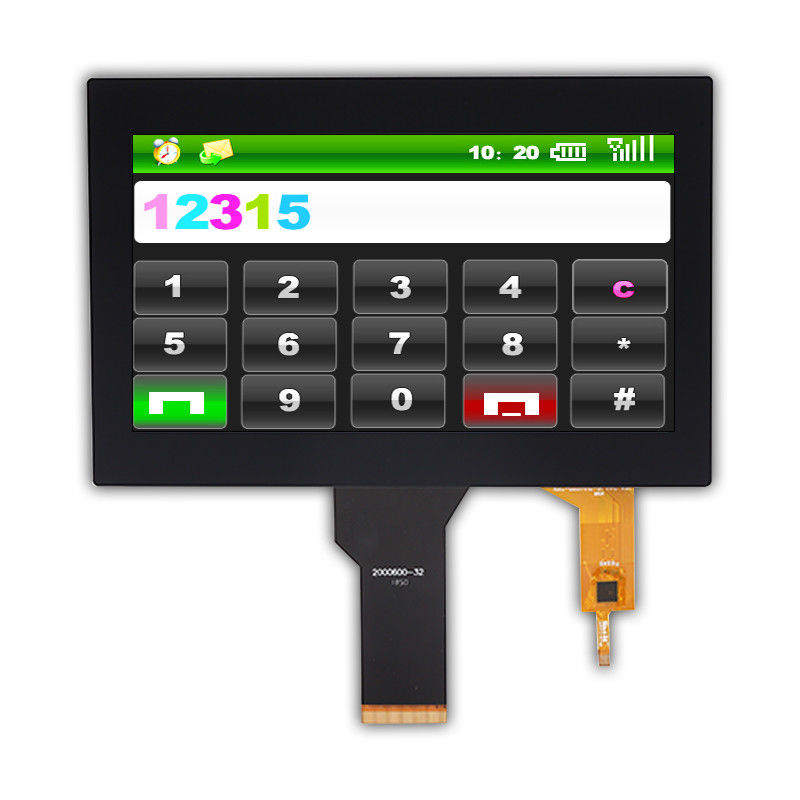

ChengHao Display model CH700WV02A-CTP is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a
capacitive touch panel and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA
(800 horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B.
signal input. The driver is mounted on the glass and the interconnection via FPC includ
-ing components to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as mo
-difying back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
