800x480 I2C 250cd/M2 TFT LCD Touch Screen 7" CTP PCB With Drive Board
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH700WV02A-CTP |
|
Detail Information |
|||
| Module Type: | 7" | Display Mode: | Normally White/TN/Transmissive |
|---|---|---|---|
| Number Of Dots: | 800*3*480(RGB) | Viewing Direction: | 12 O'clock |
| Module Size: | 119.0(H)*7.4(T)*180.0(W) Mm | TFT Active Area: | 85.92(H)*154.08(W) Mm |
| Interface: | TFT:24bits RGB CTP:I2C | Luminace: | 200nits |
| High Light: | 200cd/M2 TFT LCD Touch Screen,ISO9001 TFT LCD Touch Screen,CTP I2C LCD TFT Monitor |
||
Product Description
200cd/M2 TN TFT LCD Touch Screen G+G CTP Type And Transmissive
Normally White Display Mode
| MODEL NO. | CH700WV02A-CTP |
| Module type | 7"TFT |
| Display Mode | Normally white/TN/Transmissive |
| CTP type | G + G |
| Number of Dots | 800*3*480 (RGB) |
| Viewing Direction | 12:00 |
| Gray Scale Inversion Direction | 6:00 |
| Module size | 180 (W) * 119 (H) * 7 (T) mm |
| TFT Active area | 154 (W) * 86 (H) mm |
| TFT Dot pitch | 0.1790(H) * 0.1926 (W) mm |
| Interface | TFT:24bits RGB CTP:I2C |
| Backlight Type | White LED |
| Luminace | 200 nits |

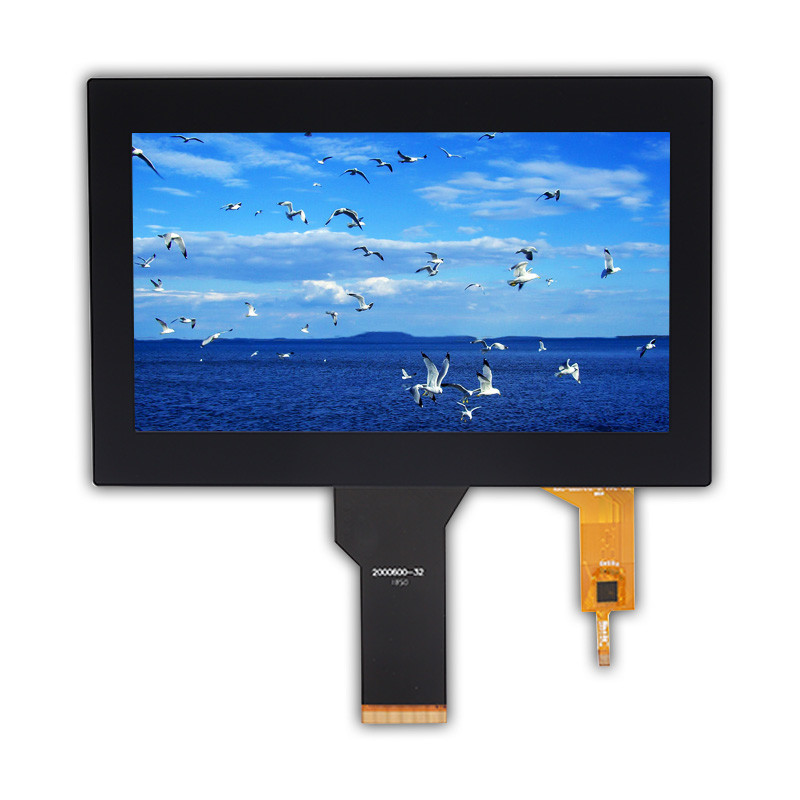

ChengHao Display model CH700WV02A-CTP is a color active matrix thin film transistor (TFT) li
-quid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model
is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch
panel and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA (800
horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal
input. The driver is mounted on the glass and the interconnection via FPC including components
to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modify
-ing back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
