Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | 3.5 Inch |
|---|---|---|---|
| Certification: | ROHS / ISO9001 / CE | Model Number: | CH350HV15 |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Size / Inch: | 3.5 Inch | Color: | 65k / 262k / 16.7M |
|---|---|---|---|
| Number Of Dots: | 320 * 3 * 480 | Display Mode: | Normally White TN , Transmissive |
| Viewing Direction: | 6 : 00 | Connection: | Connector |
| Pin Number: | 50 PIN | Interface: | SPI / MCU / SPI+RGB |
| Highlight: | HVGA TFT LCD Display,3 Line SPI TFT LCD Display,MCU RGB TFT LCD Monitor |
||
Product Description
3.5' 'TFT LCD Display 4line SPI / 3line SPI 8 9 16 18bit MCU RGB interface
| Size / Inch | 3.5 Inch |
| Color | 65k / 262k / 16.7M |
| Number of Dots | 320 * 3 * 480 |
| Display Mode | Normally White TN , Transmissive |
| Viewing Direction | 6 : 00 |
| Connection | Connector |
| Pin number | 50 PIN |
| Interface | SPI / MCU / SPI+RGB |

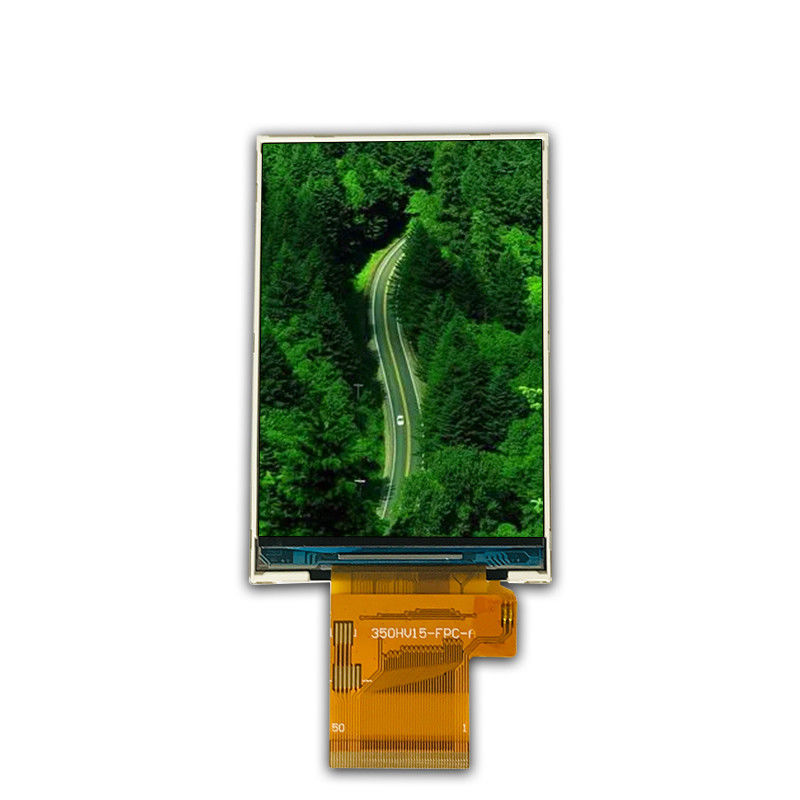

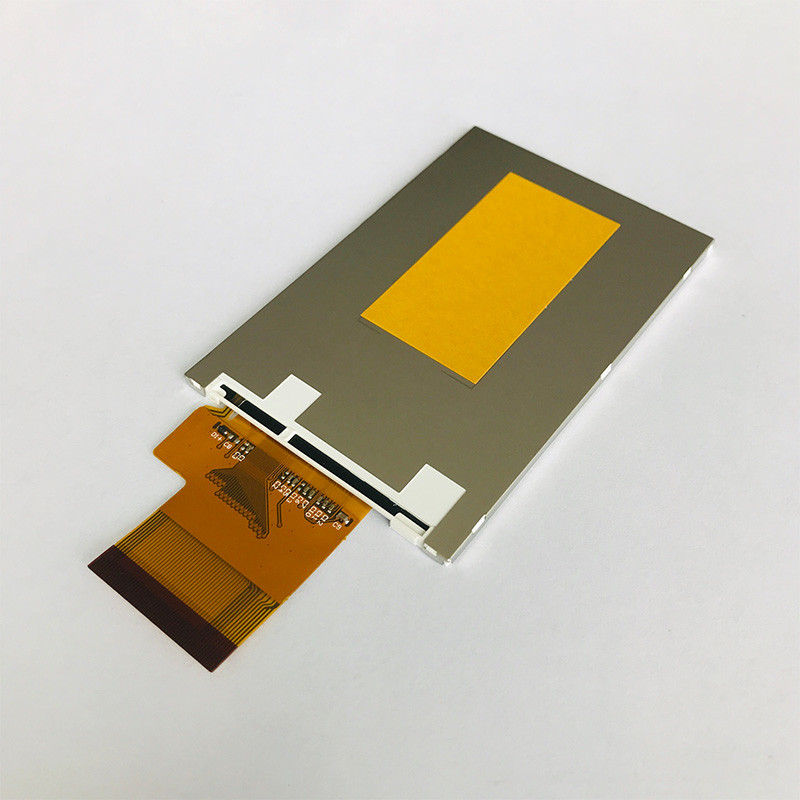

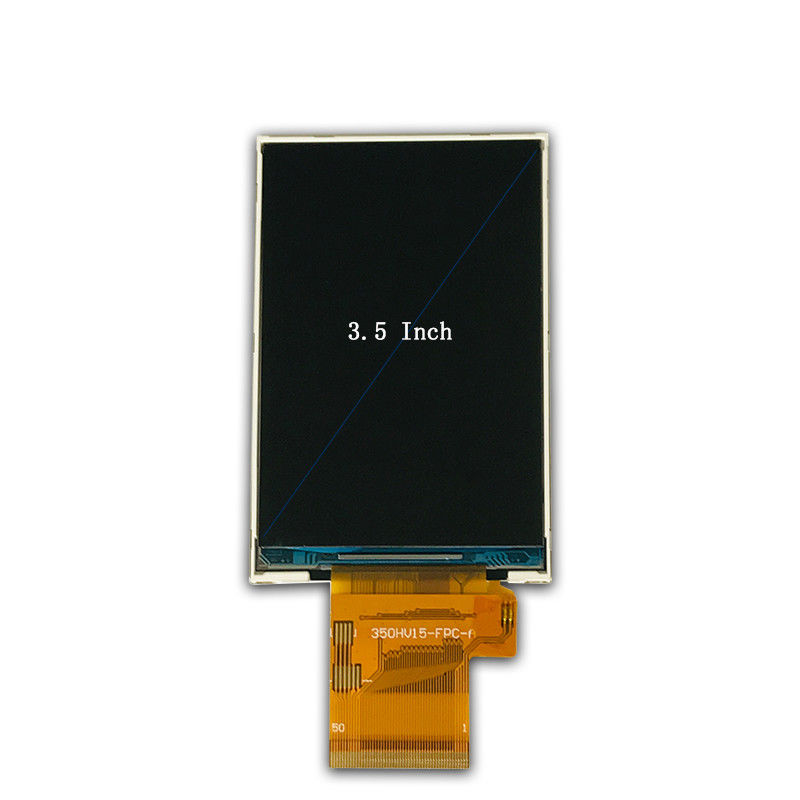

ChengHao Display model CH350HV15A is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This
model is composed of a TFT LCD panel, a driving circuit, a high brightness back-light and
FPC.
The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch
diagonally measured active display area with HVGA (320 horizontal by 480 vertical pixel)
resolution.
The driver used for this project is the Himax HX8357D or compatible and can display 262K
colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection
via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB
interface.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying FPC structure, interface definition, etc.
? RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch TFT LCD Display | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch TFT LCD Display | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch TFT LCD Display | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch TFT LCD Display | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch TFT LCD Display | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch TFT LCD Display | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch TFT LCD Display | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch TFT LCD Display | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch TFT LCD Display | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch TFT LCD Display | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch TFT LCD Display | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch TFT LCD Display | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch TFT LCD Display | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch TFT LCD Display | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
