3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 200Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 3.5"
Certification: ROHS、ISO9001、CE Model Number: CH350HV37A-CT

Detail Information

Size: 2.4 Inch Resolution: 320*480
Display Mode: Normally White TN Viewing: 6:00
Connection: Connector Interface: 4line SPI/3 Line SPI 8/9/16/18bits MCU Interface SPI+6/16/18bits RGB Interface
High Light:

3.5 Inch TFT LCD Capacitive Touchscreen

,

320×480 TFT LCD Capacitive Touchscreen

,

Sunlight Readable IPS Lcd Module

Product Description

3.5 Inch 320*480 TFT LCD Capacitive Touchscreen 3line 4line SPI Interface 8bit 9bit 16bit 18bit Mcu Interface Lcd Module

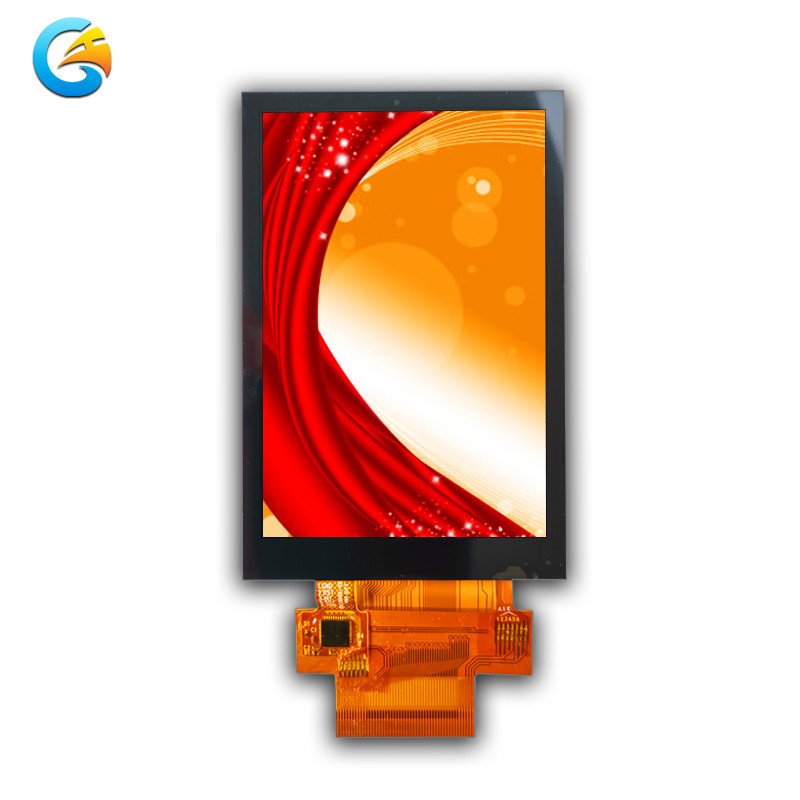

3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable 0

MODEL NO. CH350HV37A-CT
Module type 3.5"TFT + CTP
Display Mode TN/Transmissive/Normally white
CTP type P+G
Number of Dots 320*3(RGB)*480
Viewing Direction 6 o'clock
Module size 56.54(W)*84.96(H)*3.97(T)mm
TFT Active area 48.96(W)*73.44(H)mm
Interface TFT: SPI,MCU,SPI+RGB CTP:I2C
Luminace 300cd/m2



    ChengHao Display model CH350HV37A-CT is a color active matrix thin film transistor

(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.

This model is composed of a TFT LCD panel, a driving circuit, a high brightness back-light,

a capacitive touch screen and FPC.
    The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)

that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch

diagonally measured active display area with HVGA (320 horizontal by 480 vertical pixel)

resolution.
    The driver used for this project is the ILITEK ILI9488 or compatible and can display 262K

colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection

via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB

interface.
    In addition, FPC can also be customized according to customer requirements, such as

modifying FPC and LENS structure, interface definition, etc.
    RoHS Compliance & Halogen Free.

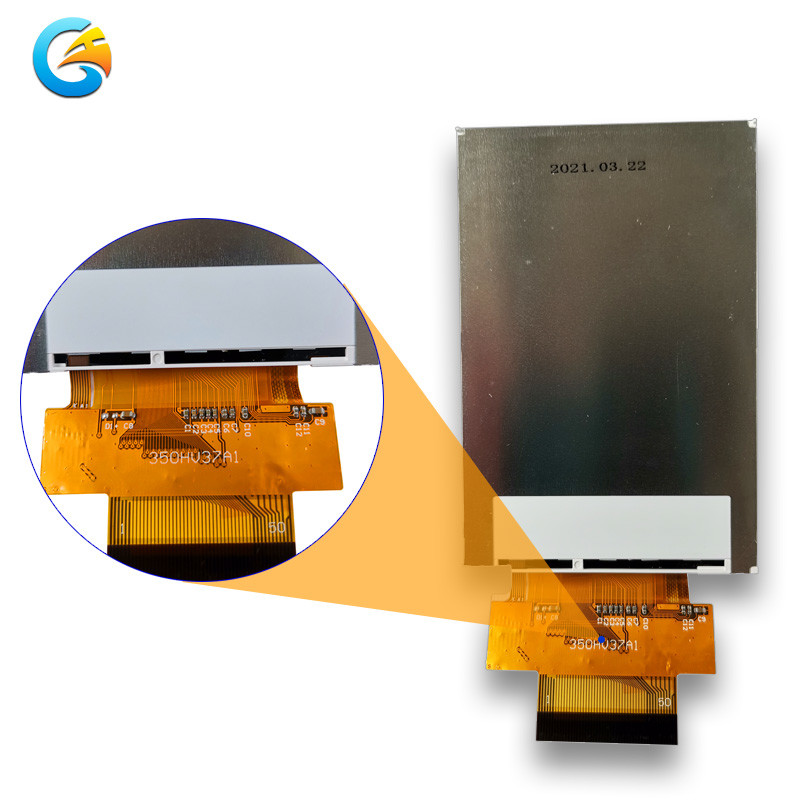

3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable 1



3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable 2

3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable 3

Module Type Display Area Display Mode
1.44 inch TFT LCD Display 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch TFT LCD Display 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch TFT LCD Display 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch TFT LCD Display 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch TFT LCD Display 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch TFT LCD Display 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch TFT LCD Display 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch TFT LCD Display 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch TFT LCD Display Circular display area Normally White IPS, Transmissive
2.31 inch TFT LCD Display 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch TFT LCD Display 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch TFT LCD Display 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch TFT LCD Display 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch TFT LCD Display 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch TFT LCD Display 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch TFT LCD Display 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch TFT LCD Display 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch TFT LCD Display 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch TFT LCD Display 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch TFT LCD Display 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch TFT LCD Display 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch TFT LCD Display 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch TFT LCD Display 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch TFT LCD Display 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch TFT LCD Display 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch TFT LCD Display 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch TFT LCD Display 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch TFT LCD Display 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch TFT LCD Display 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch TFT LCD Display 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch TFT LCD Display 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch TFT LCD Display 135.36 * 216.58 mm Normally Black IPS, Transmissive





3.5 Inch 320×480 TFT LCD Capacitive Touchscreen Sunlight Readable 4
