300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 200Kpcs/month |
| Payment Terms : | T/T |
| Place of Origin: | ShenZhen, China | Brand Name: | 2.4 Inch |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH240QV29A-T |
|
Detail Information |
|||
| Module Type: | 2.4"TFT + RTP | Display Mode: | TN/Transmissive/Normally White |
|---|---|---|---|
| Number Of Dots: | 240*3(RGB)*320 | Viewing Direction: | 6 O'clock |

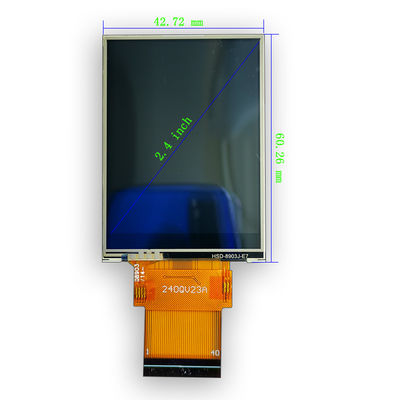

| Module Size: | 42.72(W)*60.26(H)*3.5(T)mm | TFT Active Area: | 36.72(W)*48.96(H)mm |
| Interface: | SPI、MCU、SPI+RGB | Luminace: | 300cd/m2 |
| Min. Order: | 2 Pieces | ||
| High Light: | 2.4in Small LCD Touch Screen,FPC Small LCD Touch Screen,MCU RGB TFT LCD Module |
||
Product Description

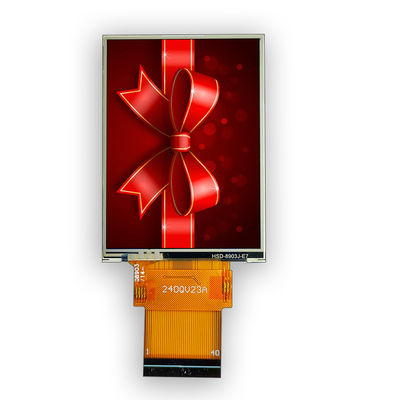

2.4 inch ROHS certified Small LCD Touch Screen 240*320 Number of
Dots LCD module SPI / MCU / SPI + RGB TFT Screen Panel
1.Product Information
| MODEL NO. | CH240QV29A-T |
| Module type | 2.4"TFT + RTP |
| Display Mode | TN/Transmissive/Normally white |
| Number of Dots | 240*3(RGB)*320 |
| Viewing Direction | 6 o'clock |
| Module size | 42.72(W)*60.26(H)*3.5(T)mm |
| TFT Active area | 36.72(W)*48.96(H)mm |
| Interface | SPI,MCU,SPI+RGB |
| Luminace | 300cd/m2 |
2. Product Description
ChengHao Display model CH240QV29A-T is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, a driving circuit, a high brightness back-light,
a resistive touch screen and FPC.
The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.4 (4:3)
inch diagonally measured active display area with QVGA (240 horizontal by 320 vertical pixel)
resolution.
The driver used for this project is the ILITEK ILI9341V or compatible and can display
262K colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the
interconnection via FPC including components to drive the display module.

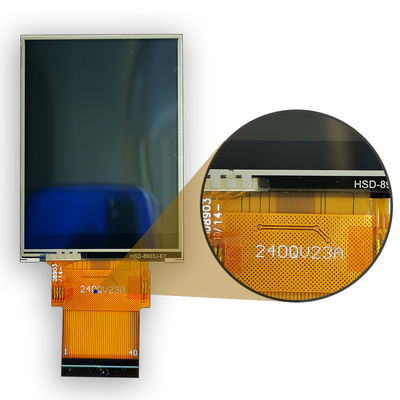

In addition, FPC can also be customized according to customer requirements, such as
modifying FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
3.Product Drawings
4.Other Products
| Module Type | Display Area | Display Mode |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch TFT LCD Display | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch TFT LCD Display | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch TFT LCD Display | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch TFT LCD Display | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch TFT LCD Display | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch TFT LCD Display | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch TFT LCD Display | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch TFT LCD Display | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch TFT LCD Display | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch TFT LCD Display | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch TFT LCD Display | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch TFT LCD Display | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch TFT LCD Display | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch TFT LCD Display | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
5.Product Packaging
6.Express Shipping
