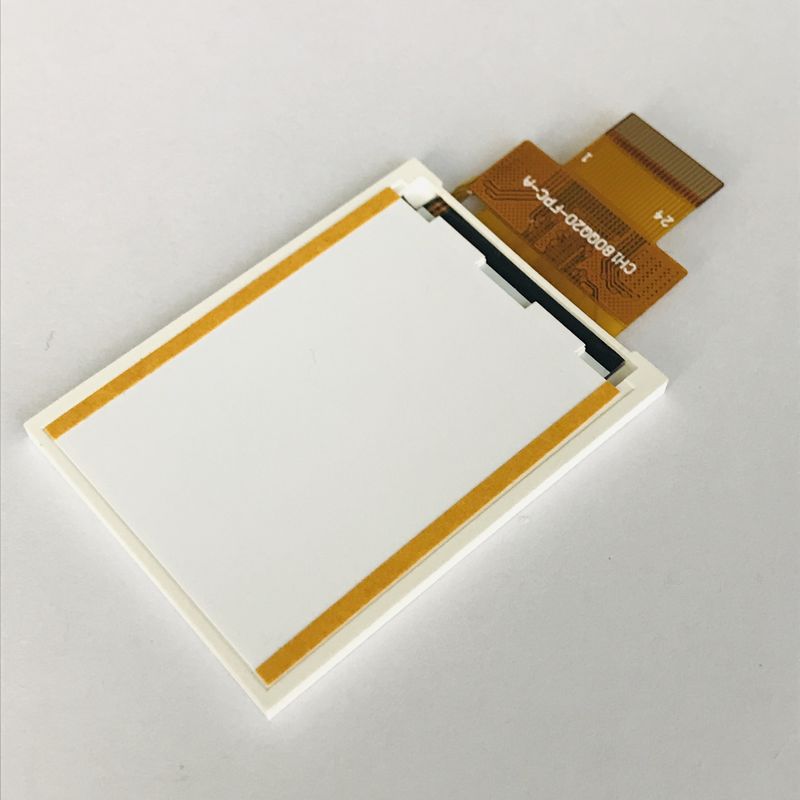

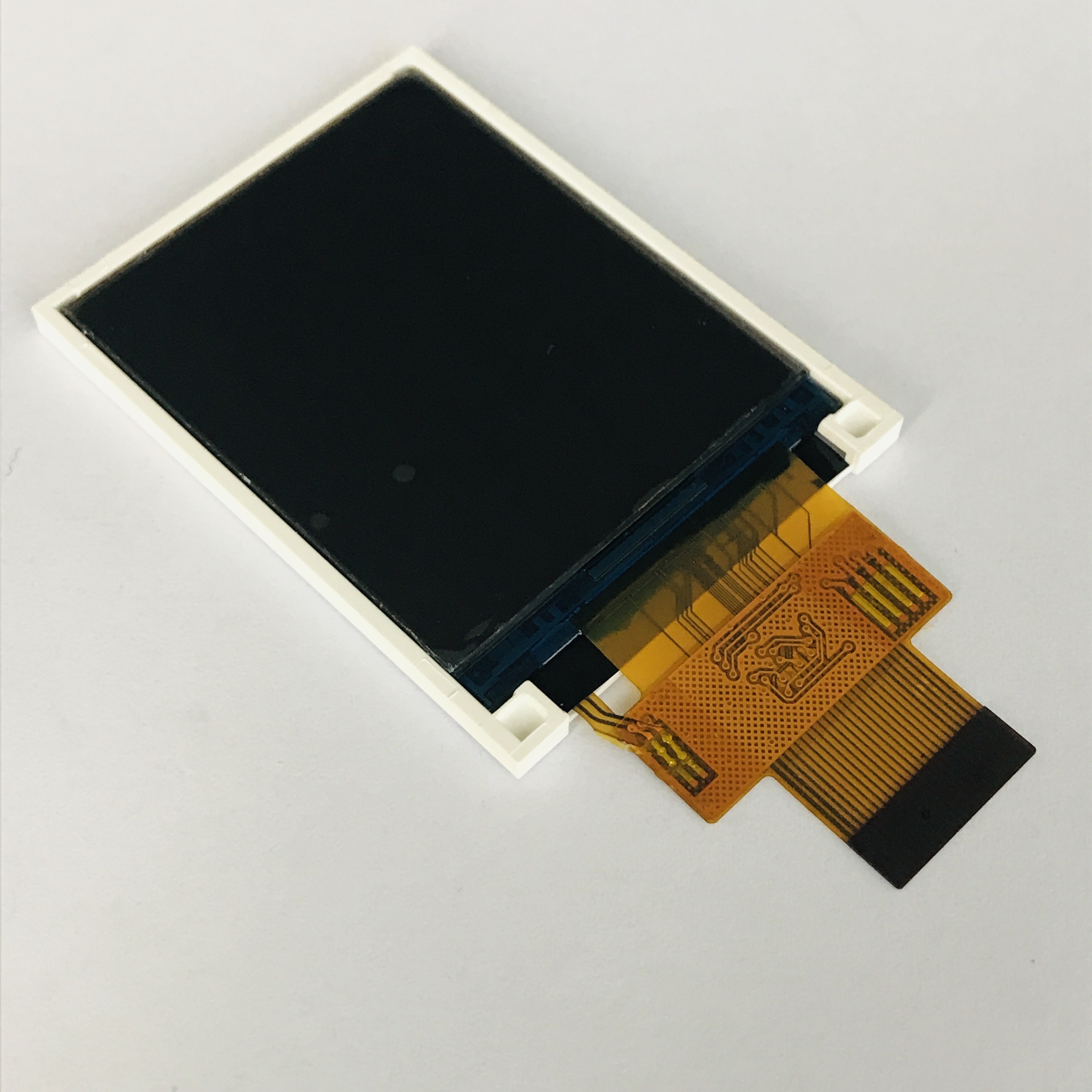

MCU SPI RGB Interface ST7735S Small LCD Touch Screen 1.77 Inch

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 1.77 inch
Certification: ROHS、ISO9001、CE Model Number: CH180QQ20A

Detail Information

Size: 1.77 Icnh Dot Arrangement: 128*3(RGB)*160
Display Mode: TN/Transmissive/Normally White Module Size: 34.0(W)*45.78(H)*2.3(T)mm
Active Area: 34.0(W)*45.78(H)*2.3(T)mm Brightness: 300cd/m2
Interface: 8bit I80-system Interface / SPI Touth: NO
Operating Temperature: -10 ~ +60 Storage Temperature: -30 ~ +80
High Light:

ST7735S Small LCD Touch Screen

,

ST7735S LCD Screen

,

1.77 Inch Small LCD Touch Screen

Product Description

MCU SPI RGB Interface 1.77 Inch ST7735S Small LCD Touch Screen



1.77 inch 240*320 QVGA, ST7735S, MCU SPI RGB interface TFT LCD module with resistive touch panel





Color TFT 1.8 inch 128*160, ST7735S,SPI MCU interface, TN TFT LCD

1)ChengHao TFT

Size: our standard TFT LCD displays range from 0.96 inch to 10.1 inch

Brightness: can be designed according to customer requirements

Polarizer: TV, EWV, ofilm

Connection: supports various FPC designs.





1. LCD name: 1.77 inch 128*160 QVGA, ST7789V, MCU/SPI/RGB interface TFT LCD
2. Part No.: CH180QV20A
3. Other model Part NO.:
4. Compatible part No.:
5. Size.: 1.77 inch
6. With touch panel or not: No
7. Display type: TFT
8. Display colors: 65/262K
9. Resolution (pixels): 128(RGB)*160
10. Pixel pitch: 0.111(H)*0.111(V)
11. Viewing direction: ALL
12. Controller IC: ST7735S
13. Display mode: TN
14. Overall size: 334.0(W)*45.78(H)*2.3(T)mm
15. Viewing area: 31.832(W)*41.42(H)mm
16. Luminance: 300cd/m2
17. Interface type: 8bit i80-system interface / SPI
18. Pin NO.: 24pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3.3V
22. Backlight type and color: LED backlight/white
23. Backlight: 2 LED
Vled =3.2V, Iled=40mA
24. Life span: 50000h
25. Operating temperature range: -20----70 °C
26. Storage Temperature range: -30----80 °C
27. Certification of registration: ISO9001
28. Compliant: RoHS



Drawing:

MCU SPI RGB Interface ST7735S Small LCD Touch Screen 1.77 Inch 0



Prduct Application​:

Chenghao Optoelectronics focusing on the production and development of color TFT LCD modules, can provide one-stop color TFT module solutions for various shapes, and can change FPC, pin definition, driver and motherboard according to customers' requirements. High voltage or low voltage can be achieved, the working temperature can be achieved ultra-wide temperature up to -40℃-90℃, the viewing angle can be achieved from 6:00 O’clock to full IPS.



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
