240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle

Minimum Order Quantity : 2PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 200Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 2.4 Inch
Certification: ROHS、ISO9001、CE Model Number: CH240QV29A-T

Detail Information

Size: 2.4 TFT Lcd Dot Arrangement: 240×320
Module Size: 42.72(W)*60.26(H)*3.5(T) M Active Area: 36.72(W)*48.96(H) M
Brightness: 300-350 Cd/m² Interface: SPI, MCU ,MIPI
Display Mode: T N Touch: Resistive Touch
High Light:

ROHS 2.4 Inch TFT LCD Display

,

240x320 TFT LCD Display

,

2.4 TFT SPI 240x320

Product Description

240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle



2.4 inch 240*320 full viewing angle SPI interface TFT IPS LCD display module



If you don't find a suitable one on our Google platform, please contact us. Because we have too many kinds of products, some of them haven't come yet.



Our Advantages:
1.One-stop Solution
(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3) LCD module. Owning factories to do LCD module assembly, ISO9001, CE certificated.
(4) LCD module+Capacitive touch panel.Chenghao customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5) LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6) Complete solution. We can also customize plastic frame to contain our display.

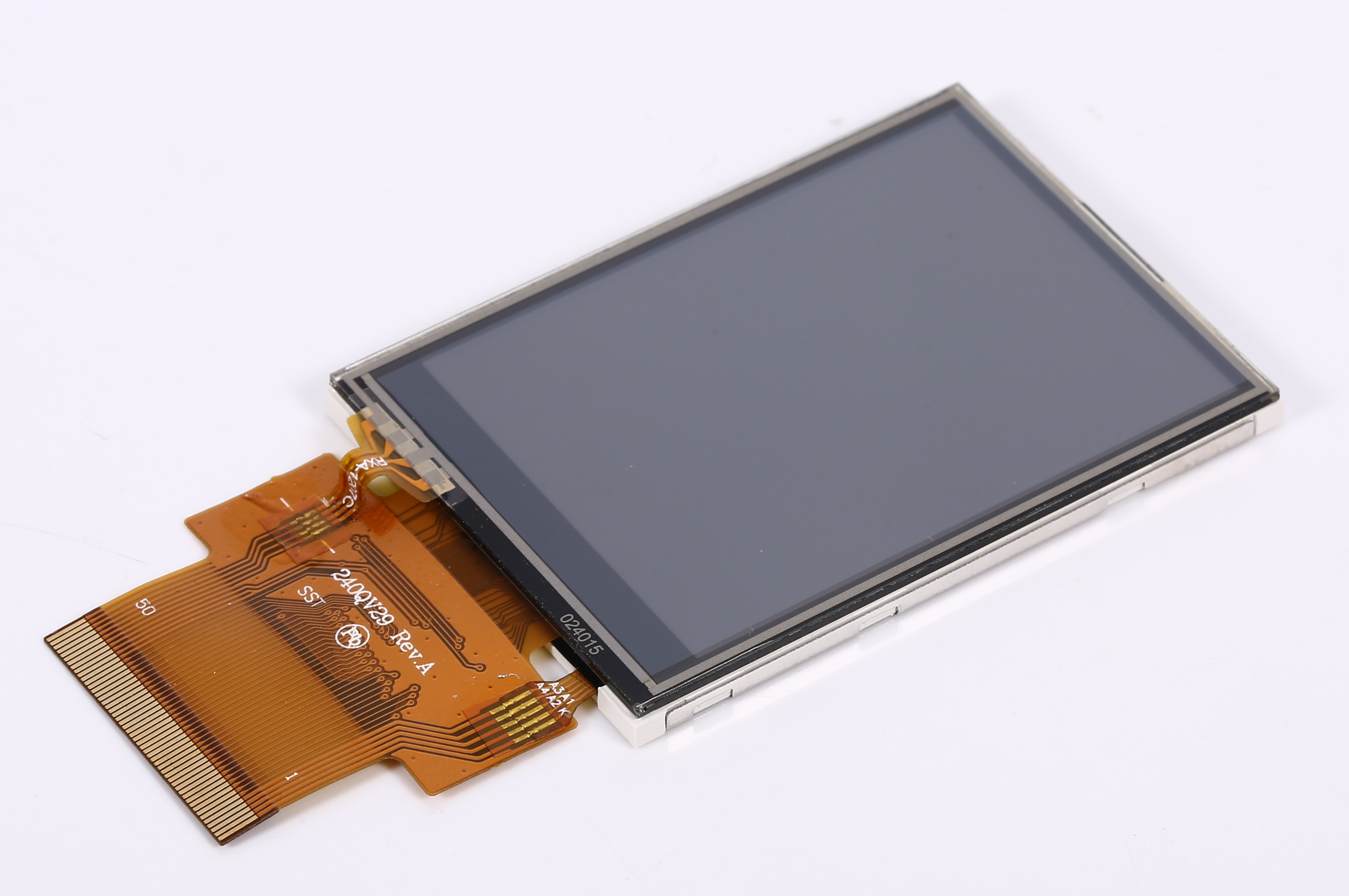

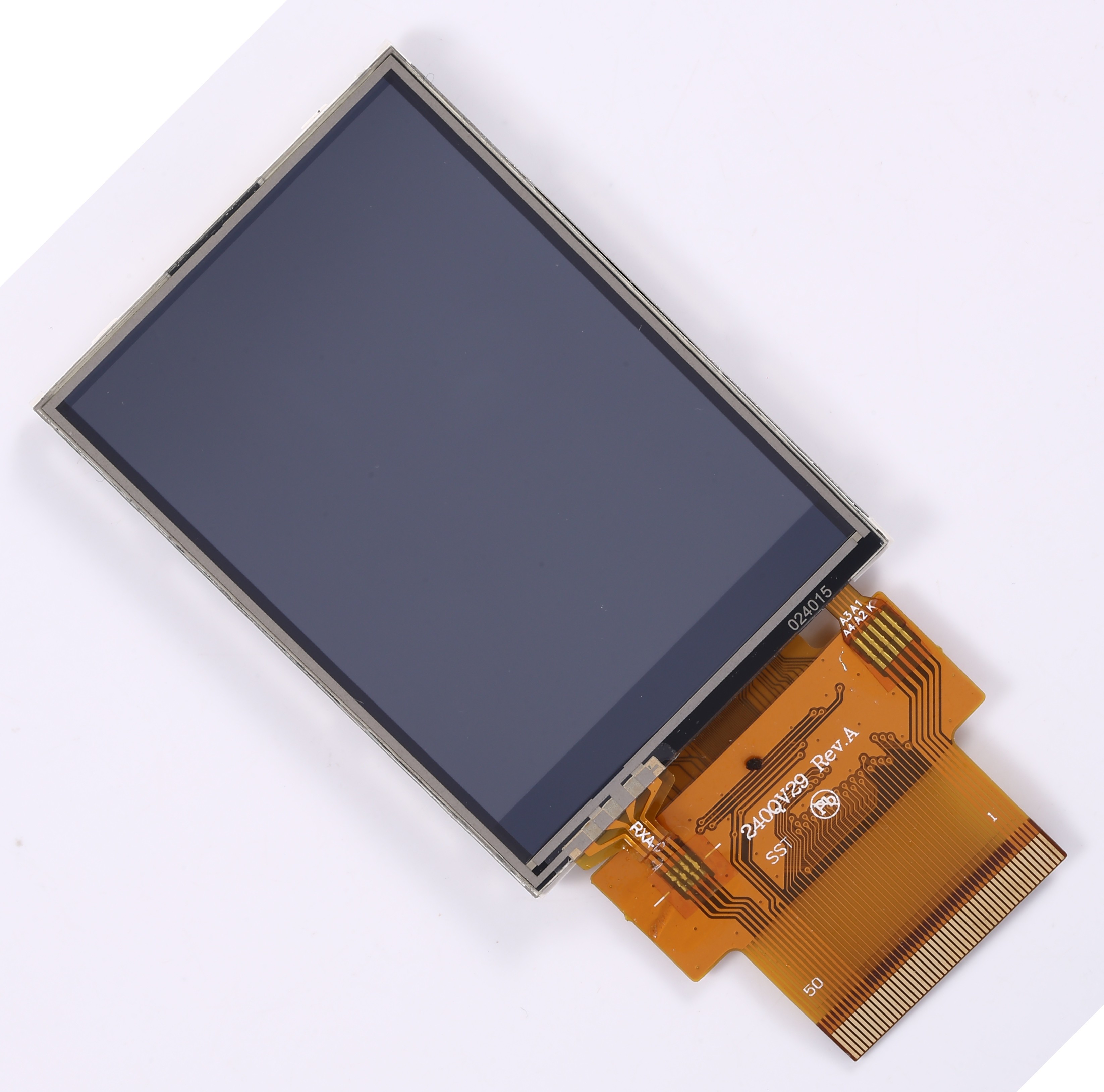

Front view of product:

240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle 0



drawing:

240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle 1

MODEL NO. CH240QV29A-T
Module type 2.4"TFT + RTP
Display Mode TN
Number of Dots 240*320
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Module size 42.72(W)*60.26(H)*3.5(T)mm
TFT Active area 36.72(W)*48.96(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
Luminace 230cd/m2



240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle 2

240x320 SPI Interface 2.4 Inch TFT LCD Display Full Viewing Angle 3



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.



Our services:

1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
