HX8238D TFT LCD Display

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 3.5 Inch
Certification: ROHS、ISO9001、CE
Model Number: CH350QV06A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 50Kpcs/month

Detail Information

Size: 3.5" TFT TFT IPS LCD Screen Dot Arrangement: 320*3(RGB)*240
Display Mode: TN/Transmissive/Normally White Module Size: 76.9(W)*63.9(H)*3.3(T)mm
TFT Active Area: 70.08(W)*52.56(H)mm Luminace: 500cd/m2
Interface: 24 Bit RGB Operation Temperature:: -20°C ~ +70°C
Storage Temperature:: -30°C ~ +80°C
High Light:

HX8238D TFT LCD Display

,

76.9mm TFT LCD Display

,

HX8238D LCD Display

Product Description

HX8238D TFT LCD Display



3.5 Inch C 320*240 Custom IC HX8238D lcd display 40pin LCD



Product Specification:

1. tft is 3.5 inch screen, resolution is 320 * 240, effect is tn.
2. It is composed of LCD + driver IC + backlight + FPC.
3. We can customize different brightness backlight and FPC interface definition according to your requirements.
4. capacitive touch screen and resistive touch screen are available for you to choose from.
5. We have experienced R & D team to customize solutions for you.
6. RoHS, CE compliant.

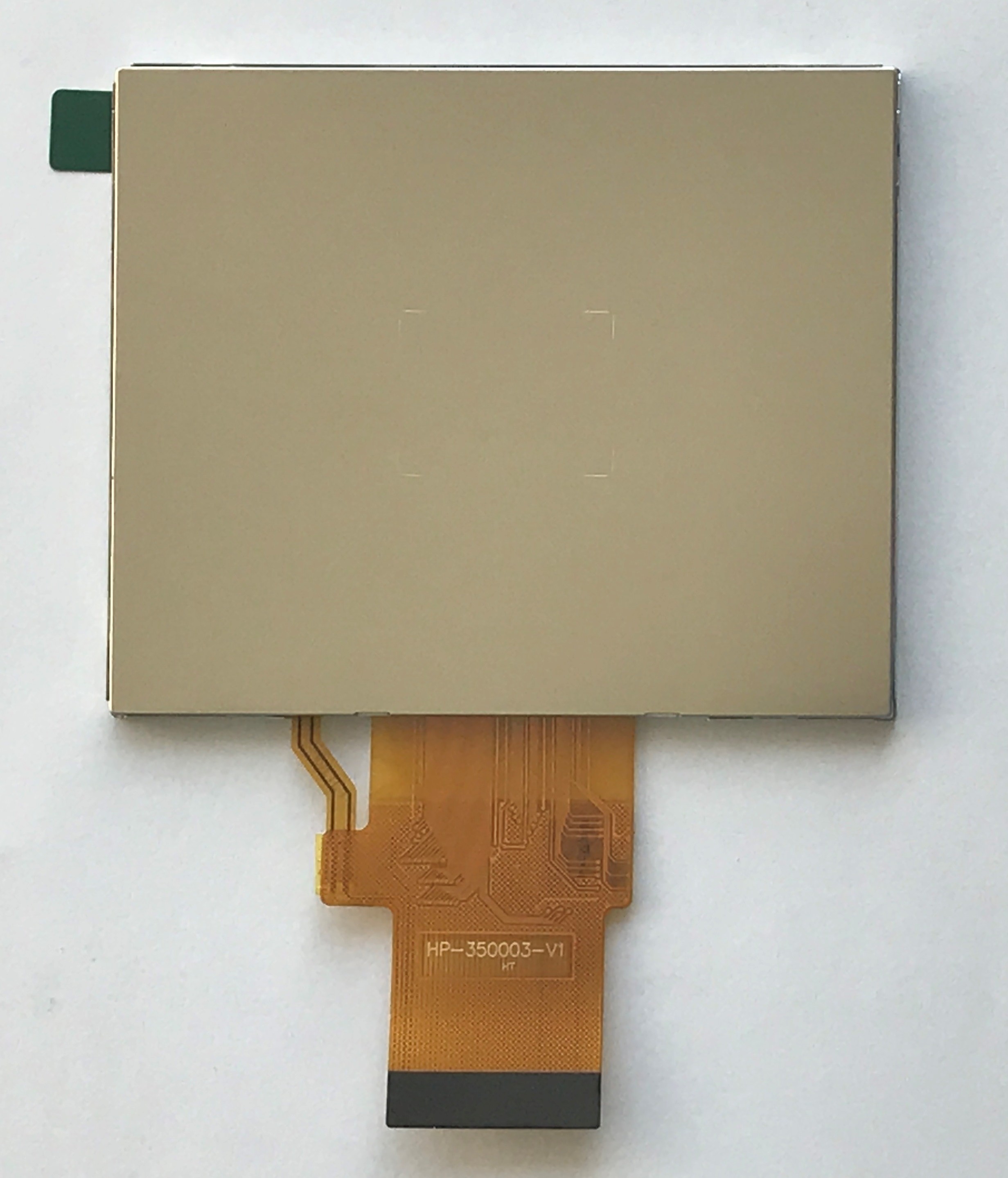

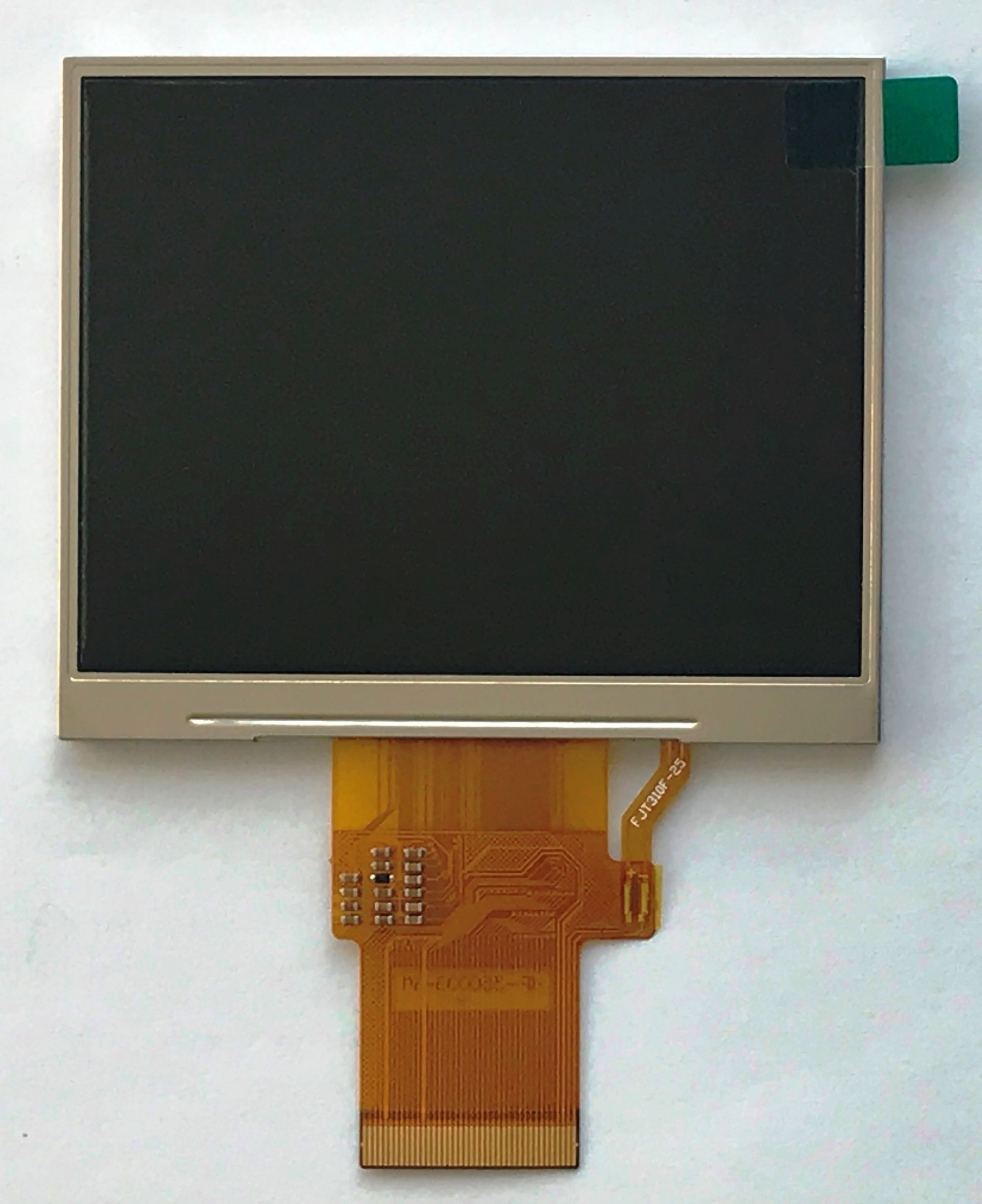

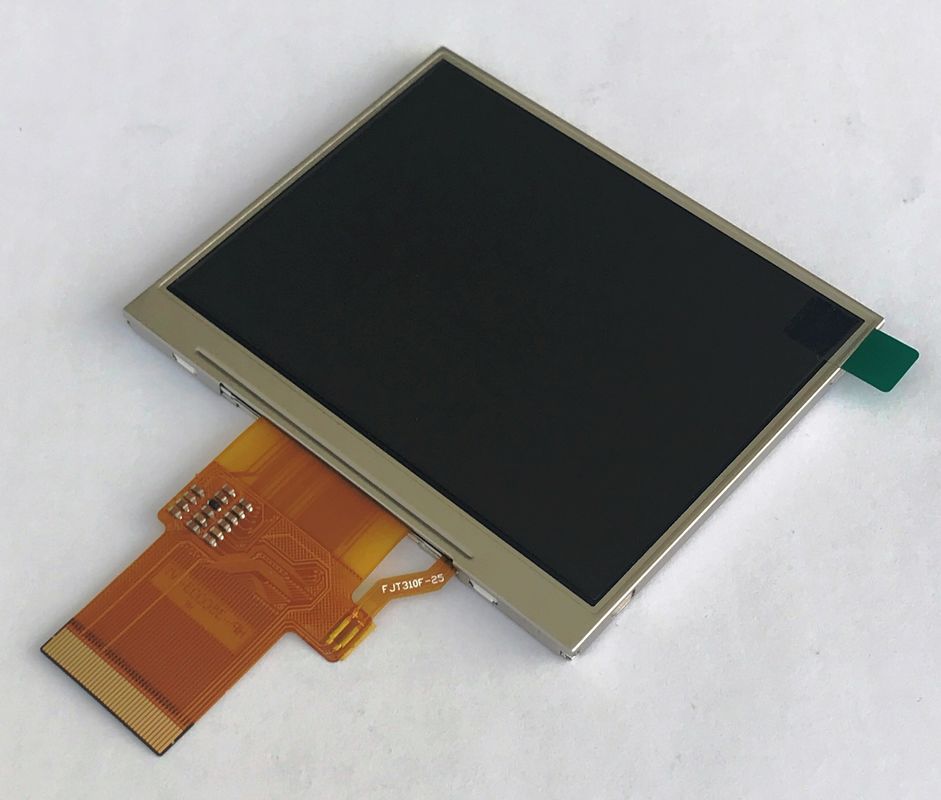

Front view of product

HX8238D TFT LCD Display 0

HX8238D TFT LCD Display 1





Drawing:

HX8238D TFT LCD Display 2HX8238D TFT LCD Display 3

HX8238D TFT LCD Display 4



Packaging & Shipping
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
