The Technological Revolution of Integrated Touch for TFT LCDs

I. Technical Analysis: The Deep Integration of Touch and Display

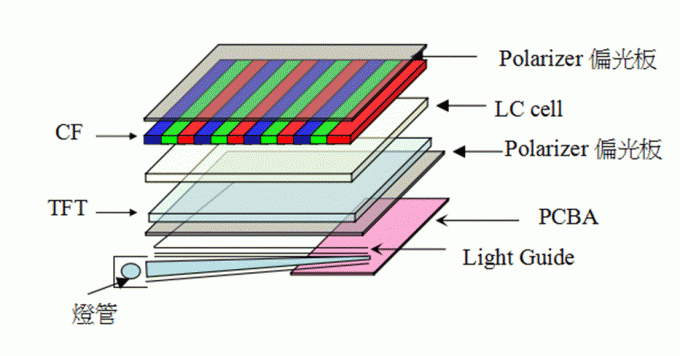

1.1 Technical Principle and Core Structure

The core of In-Cell TFT LCD (In-Cell Thin Film Transistor Liquid Crystal Display) lies in directly integrating the touch sensor into the liquid crystal layer of the display panel, rather than using the traditional external touch layer. Its working principle is based on the combination of TFT driving technology and touch electrodes: on the TFT substrate, touch sensing lines are formed through the photolithography process, sharing the same substrate with the display pixel matrix. When a user touches the screen, the touch electrodes detect the capacitance change, and the TDDI (Touch and Display Driver Integration) chip realizes the synchronous processing of touch signals and display signals.

1.2 Technical Differences from On-Cell and External Touch

• On-Cell: The touch layer is located on the outside of the CF glass of the display panel. It requires an additional touch driver chip, and its thickness is slightly higher than that of In-Cell.
• External Touch: For example, in the GFF (Glass + Film + Glass) structure, there are multiple layers and a large thickness, resulting in a relatively slow touch response speed.
• In-Cell: The touch layer and the display layer are deeply integrated. The thickness can be reduced by more than 30%, which reduces light reflection and increases the screen - to - body ratio.

II. Core Advantages: Thin and Light, High - Efficiency, and Experience Upgrade

2.1 Thin and Light Design

• High Resolution and Wide Viewing Angle: By combining advanced technologies such as IPS (In - Plane Switching) and LTPS (Low - Temperature Poly - Silicon), In-Cell screens have achieved a qualitative leap in display performance. It can easily reach a resolution of over 2K, presenting extremely delicate screen details to users. Whether it is every frame of a high - definition movie or a complex scene in a game, it can be displayed with ultra - high clarity. Meanwhile, its viewing angle can reach 178°. This means that when viewing the screen from almost any angle, users can obtain a visual effect almost the same as that of viewing from the front. The color reduction has also been significantly increased by 15%, making the colors presented on the screen more vivid and realistic, close to the colors seen by the human eye in the real world.
• Low Reflectivity and High Contrast: The integrated structure of In-Cell screens effectively reduces inter - layer reflection. In daily use, we often encounter the situation where the screen reflection makes it difficult to see the content. The In-Cell technology has greatly improved this problem. When the screen is off, it looks darker, forming a sharp contrast with the on - screen image, enabling the contrast ratio to reach over 1500:1. This not only enhances the layering and three - dimensionality of the image but also allows users to clearly see the screen content in strong - light environments. For example, under direct sunlight outdoors, the mobile phone screen can still clearly display navigation information.

2.3 Touch Experience Enhancement

• Response Speed: The touch sampling rate of In-Cell screens can reach 240Hz, which is 30% faster than traditional external touch. This means that users' touch operations can be responded to more quickly and accurately. When playing games, when sliding the screen at high speed or performing multi - finger operations, the screen can capture the finger movements in real - time without any delay or 卡顿现象. It brings a more fluent gaming experience for players. In daily operations, such as quickly switching applications or zooming pictures, users can also feel a more sensitive touch response.

• Reliability: Since the touch layer is embedded in the display panel, the risk of physical damage caused by external collisions, friction, etc. is reduced. Even if the screen surface is scratched or impacted to a certain extent, the touch function can still operate normally. In addition, In-Cell screens with an IP67 waterproof rating can resist liquid penetration. Even if a mobile phone accidentally falls into water, within the specified time and depth, the touch and display functions of the screen will not be affected, greatly improving the durability and reliability of the device.

III. Application Fields: From Consumer Electronics to Industrial Control

3.1 The Revolution of In - Car Displays

• Large - Screen and Multi - Screen Trends: With the rapid development of automotive intelligence and connectivity, the in - car display system is undergoing a profound transformation, among which the trends of large - screen and multi - screen are becoming more and more significant. In-Cell TFT LCD technology, with its advantages of being thin, light, and highly integrated, has become an important technical support in the field of in - car displays. In terms of large - screen applications, In-Cell technology can well adapt to central control screens of 12.3 inches or larger. In some high - end models, even larger - sized screens have been applied. For example, the Hyperscreen of Mercedes - Benz has an astonishing size of 56 inches. Three screens are seamlessly integrated, spanning the entire center console, bringing a shocking visual experience to drivers and passengers. With the In-Cell technology, the thickness of such a large - screen is only 6mm, which greatly saves interior space and also enhances the overall technological sense of the interior. This large - screen design not only provides a wider display area, allowing various vehicle information such as navigation, vehicle status, and multimedia content to be presented to users more clearly and intuitively, but also can achieve multi - task processing through split - screen display and other functions, improving driving convenience and safety.
• Resistance to Environmental Interference: Cars face various complex environmental conditions during driving, such as high temperature, low temperature, and strong light, which pose extremely high requirements for the performance of in - car displays. In-Cell TFT LCD technology has excellent wide - temperature characteristics and can operate stably in extreme temperature environments ranging from - 40°C to 85°C. Whether in the cold Arctic region or the hot desert, the vehicle's display screen can display normally without problems such as abnormal display or touch failure caused by temperature issues. In addition, to deal with strong - light environments such as direct sunlight, In-Cell screens also adopt advanced anti - glare coating technology. This coating can effectively reduce the reflectivity of the screen surface. Even in strong sunlight, drivers can clearly see the content on the screen, avoiding visual interference caused by reflection and greatly improving driving safety.

3.2 Smartphones and Tablets

• Standard for Flagship Models: In the smartphone market, In-Cell TFT LCD technology has long been a standard for flagship models. Apple's iPhone X series was the first to adopt In-Cell technology, achieving a design with ultra - narrow bezels and a high screen - to - body ratio, leading the development trend of smartphone screen technology. The screen bezel of the iPhone X is only 1.61mm, and the screen - to - body ratio is as high as 81.1%. This allows the phone to have a larger screen size while maintaining a compact body, bringing a more immersive visual experience to users. Samsung's S series also uses In-Cell technology and continuously optimizes the screen performance. Take the Samsung Galaxy S21 as an example. Its screen has a 2K resolution and a 120Hz high refresh rate. At the same time, through In-Cell technology, a thin and light design is achieved. The body thickness is only 7.9mm, and the weight is 169g. While ensuring excellent display effects, it also takes into account the grip and portability of the phone. The successful applications of these flagship models not only demonstrate the strong competitiveness of In-Cell technology in the smartphone field but also promote the continuous pursuit and innovation of screen technology in the entire industry.

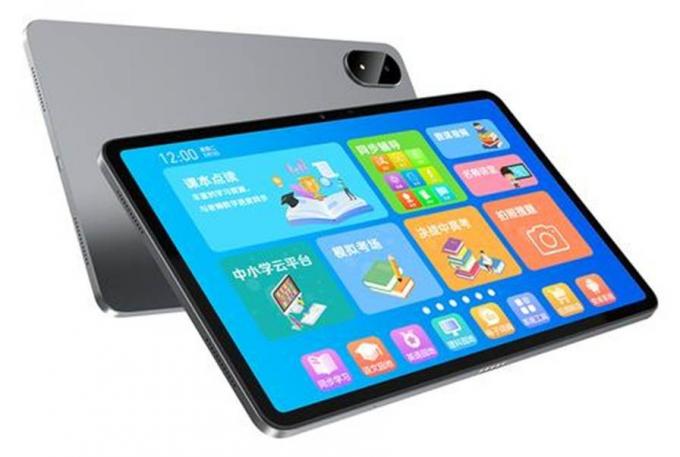

• Applications in Educational Tablets: In the education field, with the rapid development of online education, the demand for tablets as learning tools is increasing. In-Cell touch tablets, with their high - precision touch performance and excellent display effects, have occupied an important position in the educational tablet market. During the epidemic, schools around the world turned to online teaching, and the demand for In-Cell touch tablets surged. According to statistics, In-Cell touch tablets accounted for 42% of the global shipments during the epidemic. These tablets support the active pen function, with a writing accuracy of up to 0.1mm, which can meet various learning needs of students, such as taking notes and drawing on e - textbooks. For example, Huawei's MatePad Pro series uses In-Cell screens. Combined with the M - Pencil stylus, it achieves a low - latency writing experience, and the writing fluency is similar to that on paper. Students can make annotations, solve problems, and draw mind maps on the tablet, improving learning efficiency. At the same time, the high - resolution and wide - viewing - angle characteristics of In-Cell screens also enable students to obtain clear and consistent visual effects when viewing the screen from different angles, protecting students' eyesight.

3.3 Industrial and Medical Equipment

• Upgrade of Human - Machine Interaction: In the field of industrial control, the degree of intelligence and automation of equipment is constantly increasing, and the requirements for human - machine interaction interfaces are also getting higher and higher. In-Cell TFT LCD screens bring a new interaction experience to industrial control terminals with their fast touch response and high reliability. In industrial production lines, operators need to monitor various complex parameters in real - time and precisely control the equipment. The touch response time of In-Cell screens can be as low as less than 10ms, which can quickly and accurately capture the touch actions of operators and achieve instant control of the equipment. For example, on the control panel of an automated factory, through the In-Cell screen, operators can easily switch different monitoring screens, adjust the operating parameters of the equipment, and perform operations such as starting and stopping the equipment. At the same time, the high reliability of In-Cell screens also ensures long - term stable operation in industrial environments, reducing production interruptions caused by screen failures and improving production efficiency.
• Medical Image Display: In the field of medical equipment, In-Cell TFT LCD technology also plays an important role, especially in medical image display. Take ultrasonic equipment as an example. 14.6 - inch In-Cell screens are widely used. They can provide high - resolution image displays, support the DICOM (Digital Imaging and Communications in Medicine) standard, and have a color depth of 10bit, which can accurately present the internal tissue structure and pathological conditions of the human body. When doctors perform ultrasonic examinations, they can clearly observe the shape, size, position, and other information of organs through the In-Cell screen, helping doctors make accurate diagnoses. In addition, the thin and light design of In-Cell screens also makes medical equipment more portable, facilitating use in different medical scenarios. For example, some portable ultrasonic diagnostic devices use In-Cell screens, allowing doctors to conduct examinations for patients anytime and anywhere, improving the accessibility of medical services.

Conclusion: The Future of Touch - Display is Here

In-Cell TFT LCD has reconstructed the ecosystem of the display industry through technological innovation. Its thin, light, efficient, and intelligent features are driving the digital transformation of fields such as automotive, consumer electronics, and industrial control. With the integration of AI, flexible technology, and sustainable materials, In-Cell will move from "function integration" to "experience upgrade" and become the ultimate interface for human - machine interaction. For industry practitioners, continuous investment in research and development, optimization of the supply chain, and embrace of emerging applications will be the key to seizing the market. In the future, we may witness disruptive breakthroughs of In-Cell technology in fields such as the metaverse and intelligent driving.
