320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 1 Pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 7-15 working days | Supply Ability : | 300Kpcs/month |
| Place of Origin: | China,Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE、RoHS | Model Number: | CH200QV18B |
|
Detail Information |
|||
| Life Time: | 50000 H | Aspect Ratio: | 4:3 |
|---|---|---|---|
| Operating Temperature: | -20 ~ +70 | Storage Temperature: | -30 ~ +80 |
| Active Area: | 30.6(W)×40.8(H) Mm | Module Size: | 34.6(W)×47.8(H)×2.0(T) Mm |
| Display Mode: | Transmission/Normally Black | Brightness: | 1000 Cd/m2 |
| Interface: | SPI MCU RGB | ||
| High Light: | sunlight readable ips lcd display,multi interface ips lcd display,sunlight readable display lcd ips |
||
Product Description

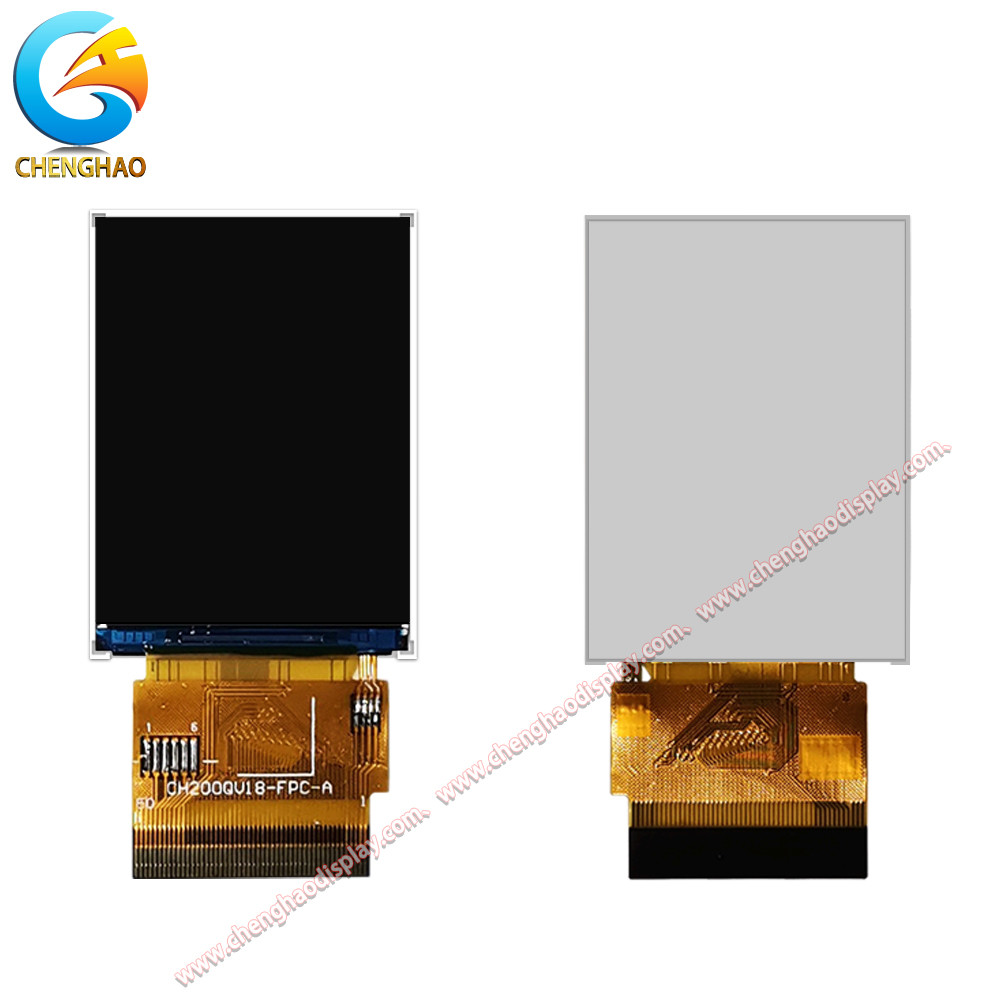

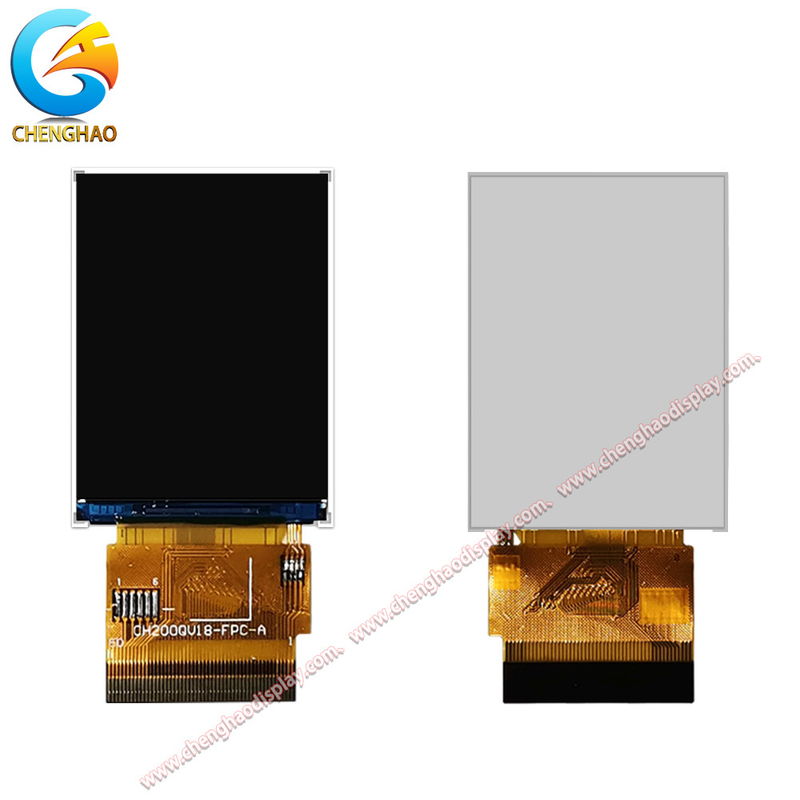

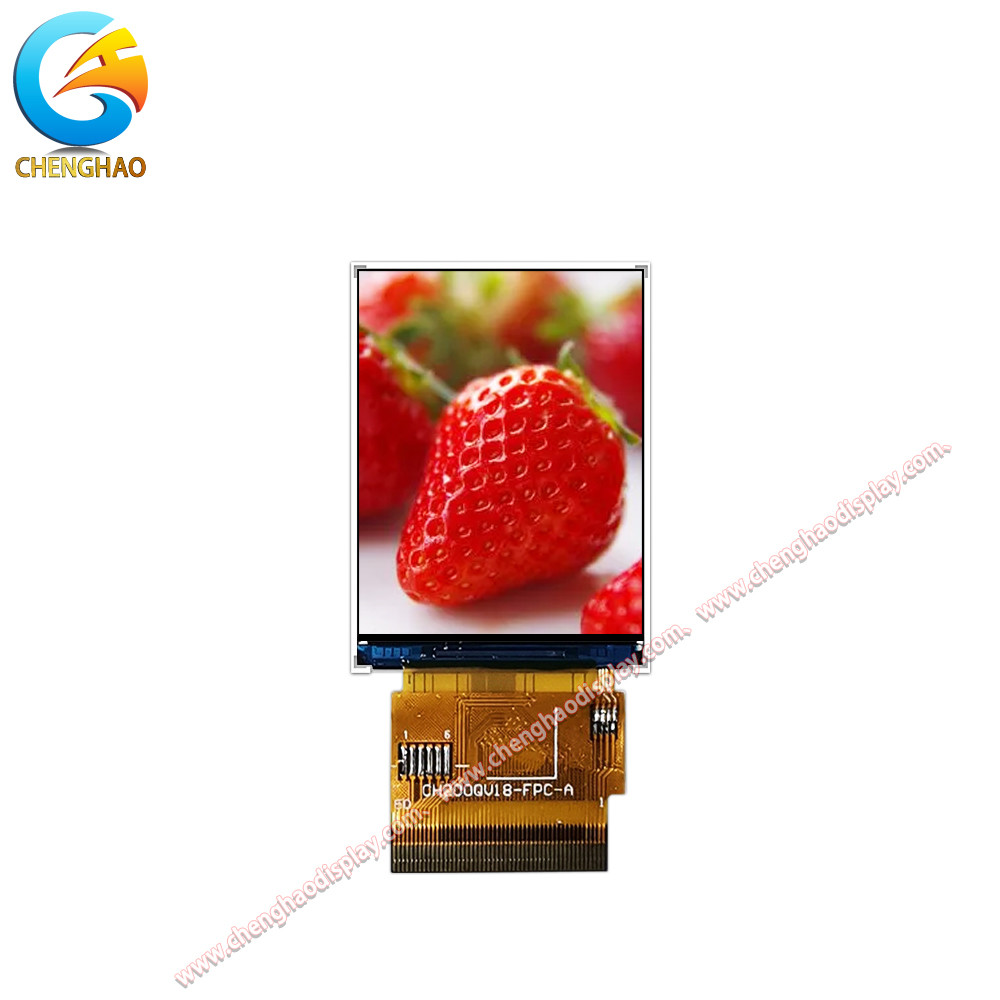

Introducing the 2 inch LCD Display from a professional LCD Display Factory! This high-quality LCD Display is specifically designed for commercial and industrial applications. It features a 2.0 inch SPI TFT LCD with a resolution of 240*320, active area of 30.6(W)×40.8(H) mm, a back light of 5 white LED in parallel, and a display mode of Transmissive/Normally Black. The Operating temperature range of this 2 inch LCD Display is -20 ~ +70, making it a reliable and durable product. With its various features and functions, this LCD Display is perfect for a wide range of industrial applications.
| Parameter | Detail |
|---|---|
| Connector | 50 Pins FPC |
| Back Light | 5 White LED In Parallel |
| Size | 2.0 Inch |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 800:1 |
| Resolution | 240*320 |
| Display Type | IPS TFT LCD |
| Response Time | 16 Ms |
| Active area | 30.6(W)×40.8(H) Mm |
| Interface | SPI+RGB / MCU / RGB |
Chenghao Optoelectronic is a professional LCD Display manufacturer offering 240x320 spi tft lcd display, IPS TFT LCD display and TFT LCD Display with CE and RoHS certification. The CH200QV18B IPS LCD Display has a 31.2(W)x41.4(H) Mm viewing area, 1000 Cd/m2 brightness, 240*320 resolution, RGB Vertical Stripe display mode and 50000H life time. It has a minimum order quantity of 1 Pcs and the delivery time is 7-15 working days. We are able to supply up to 300Kpcs/month. All products are safely packaged with tray or foam slot + carton, or with customized packages as per customers’ requirements.
Technology support and service for IPS LCD Display:
The IPS LCD Display should be packaged with industry-standard materials to ensure safe and secure shipping. The package should include a protective foam insert and bubble wrap to protect the display from damage during transit. The package should also include instructions for installation and use of the product.
The shipping method should be chosen based on the size and weight of the package, and the speed of delivery required. Air freight is usually the most cost-effective option and is recommended for shipping the IPS LCD Display. For larger packages, ground shipping may be a better option.
.
