Sunlight Readable Color LCD Screen 5.0 Inch 480x854 IPS LCD Display

Product Description

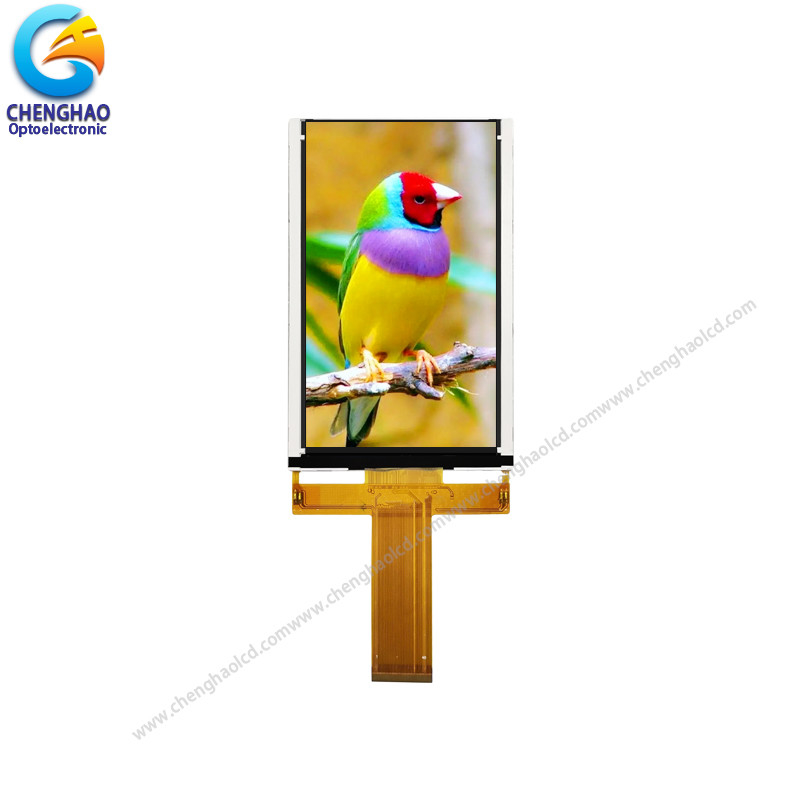

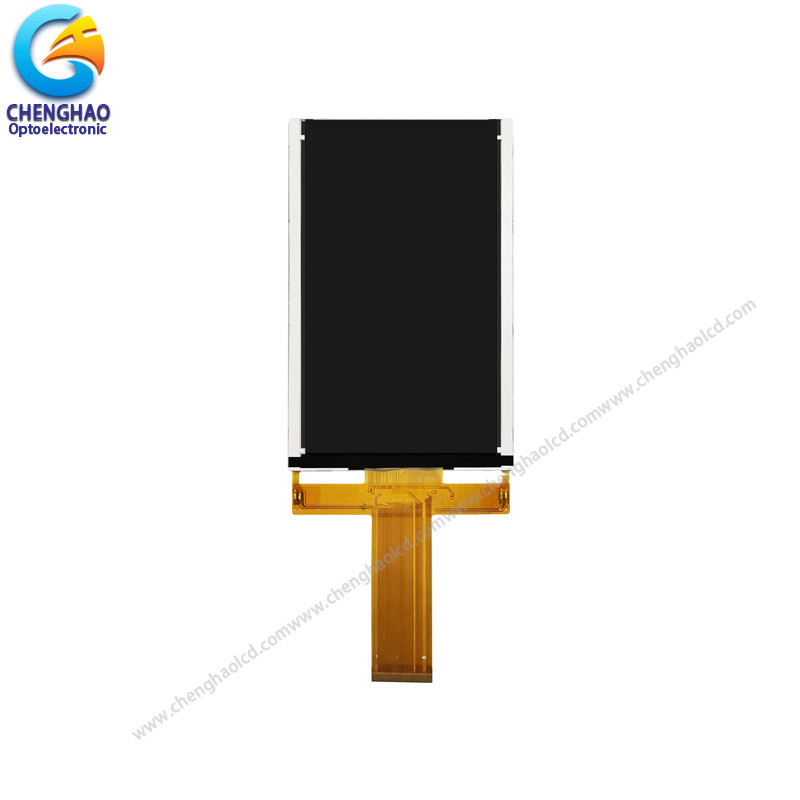

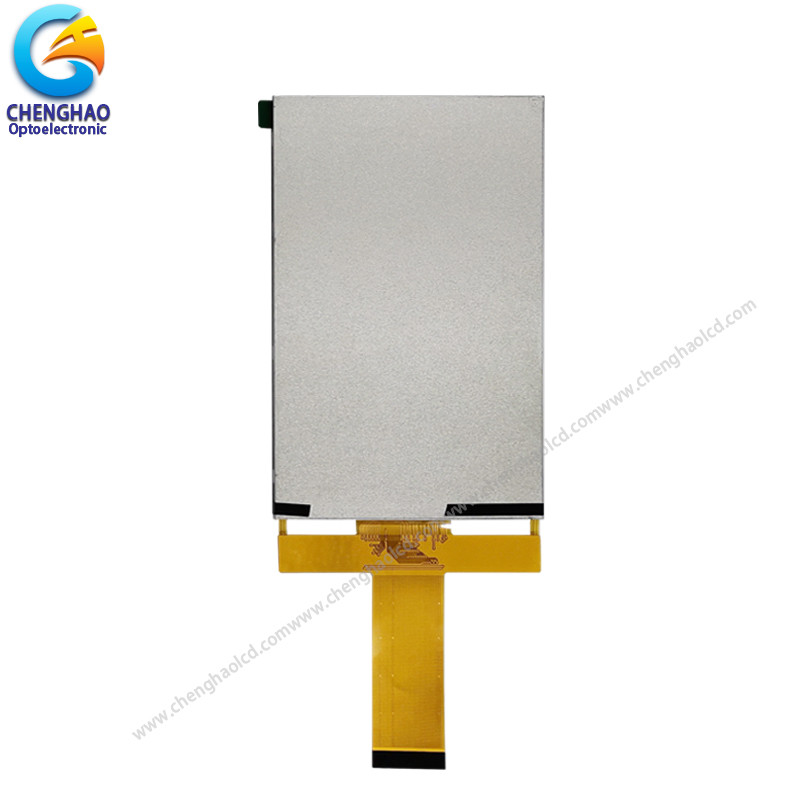

Sunlight Readable Color LCD Screen 5.0 Inch 480x854 IPS LCD Display

1. Specification

2. Description

Chenghao Optoelectronic CH500FW07B is a sunlight readable color LCD screen used in the medical field, with a brightness of more than 1000 cd/m2, and the content on the screen can still be easily read by the user when used in a strong light environment. In order to allow users to read the screen more flexibly, the LCD screen uses IPS display technology, and the viewing angle reaches 80/80/80/80, which allows users to easily read the content on the screen with a free viewing angle.

CH500FW07B is a high-brightness color LCD screen with extremely high cost performance. Its brightness can reach up to 2000 cd/m2. It works in an environment with a temperature difference between -20~+70℃, and its life span exceeds 30k Hr. There is a 5.0 inch color display area of this color LCD screen that can display 480x854 resolution video animations. Support SPI+RGB interface.
If you want to get more information about this 5 inch color LCD screen, you can consult our online customer service or send us an email.

3. Drawings

Notes:
(1) Display Type : 5.0 inch tft lcd
(2) Viewing Direction : all
(3) Lcd Drive IC :  ST7701
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

LCD type: 5.0”TFT lcd
Dot arrangement: 480×(RGB)×854 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction :ALL
Driver IC :ST7701S
Module size: 75.88(W)×119.47(H)×2.8(T) mm
Active area: 61.56(W)×109.5255(H) mm
Dot pitch: 0.12825(W)×0. 12825(H) mm
Interface: SPI + RGB
Operating temperature: -20 ~ +70 ℃
Storage temperature :-30 ~ +80 ℃
Back Light: 40 White LED
Weight :TBD g

5. Application

6. FAQ

1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service, products have passed strict certification, and the buyer has good results.

2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.

3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.

4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.

5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
