12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH123HAX04

Detail Information

Product Name: Car Navigation Display Display Resolution: 1920RGB(H)x720(V)
Active Area: 292.032 (H) X 109.512 (V) Screen Size: 12.3”(Diagonal)
Dot Pitch: 152.1x152.1mm Color Configuration: R. G. B. Stripe
Color Depth: 16.7M Colors Overall Dimension: 296.032(H) X118.844(V) X1.03(T)mm
High Light:

12.3Inch Car Navigation Display

,

ROHS Car Navigation Display

,

TFT LCD 12.3 Inch Display

Product Description

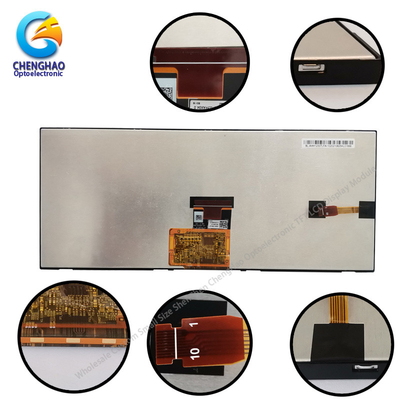

12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module



12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module



1. Specification of Car navigation display

Display Resolution 1920RGB(H)x720(V)
Active Area 292.032 (H) x 109.512 (V)
Screen Size 12.3”(Diagonal)
Dot Pitch 152.1x152.1 um
Color Configuration R. G. B. Stripe
Color Depth 16.7M Colors
Overall Dimension 296.032(H) x118.844(V) x1.03(T)mm



2. Features of Car navigation display

  • 12.3-inch(8:3)display
  • In Cell Touch sensor
  • 1920RGB x 720resolution in RGB stripe dot arrangement
  • Interfaces:1PortLVDS
  • Advanced Hyper View Angle–Normal Black wide view technology
  • RoHs compliance

2. Description of Car navigation display



CH123HAX04.0is aLTPS& Transmissive type Thin Film Transistor LiquidCrystalDisplay (TFT-LCD) with AHVA (Advanced Hyper View Angle) andin cell touchtechnology.
This model is composed of a TFT-LCD, TDDI IC and FPC.

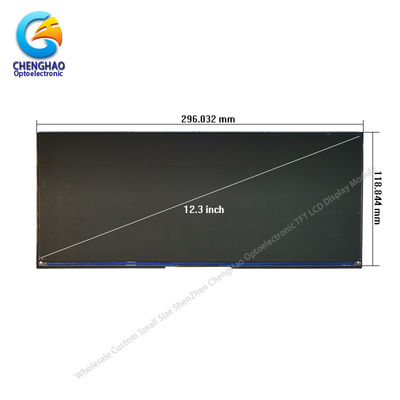

3. Drawings of Car navigation display

12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module 0


4. Application of Car navigation display

CH123HAX04A is a 1920*720 pixel high-definition TFT LCD display, which is widely used in car navigation/industrial equipment/artificial intelligence and smart home.

12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module 1
5. Our Service



1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.

8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.12.3 Inch Car Navigation Display 1920*720 High Definition TFT Module 2
