CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WV15A-CT

Detail Information

MODEL NO.: CH430WV15A-CT Module Type: 4.3"TFT + CTP
Display Mode: IPS / Transmissive / Normally Black CTP Type: G+F+F
Number Of Dots: 480*3(RGB)*800 Viewing Direction: ALL
Module Size: 66.26(W)*113.9(H)*3.35(T)mm TFT Active Area: 56.16(W)*93.6(H)mm
Interface: TFT: MIPI CTP:I2C Luminace: 350cd/m2
High Light:

CH430WV15A-CT Industrial Lcd Monitor

,

350cd/m2 Industrial Lcd Monitor

,

4.3" CTP Open Frame Lcd Display

Product Description

4.3 Inch Industrial Lcd Monitor Flat Panel Touch Screen Outdoor Open

Frame Lcd Display

CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 0

MODEL NO. CH430WV15A-CT
Module type 4.3"TFT + CTP
Display Mode IPS / Transmissive / Normally Black
CTP type G+F+F
Number of Dots 480*3(RGB)*800
Viewing Direction ALL

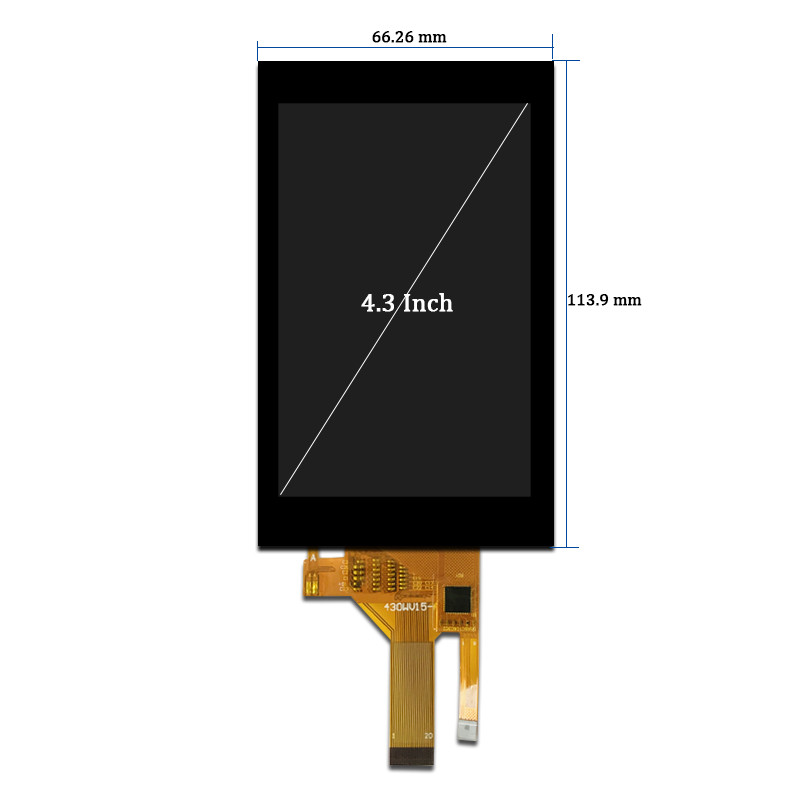

Module size 66.26(W)*113.9(H)*3.35(T)mm
TFT Active area 56.16(W)*93.6(H)mm
Interface TFT: MIPI CTP:I2C
Luminace 350cd/m2



Company Strenghth:

1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time



CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 1

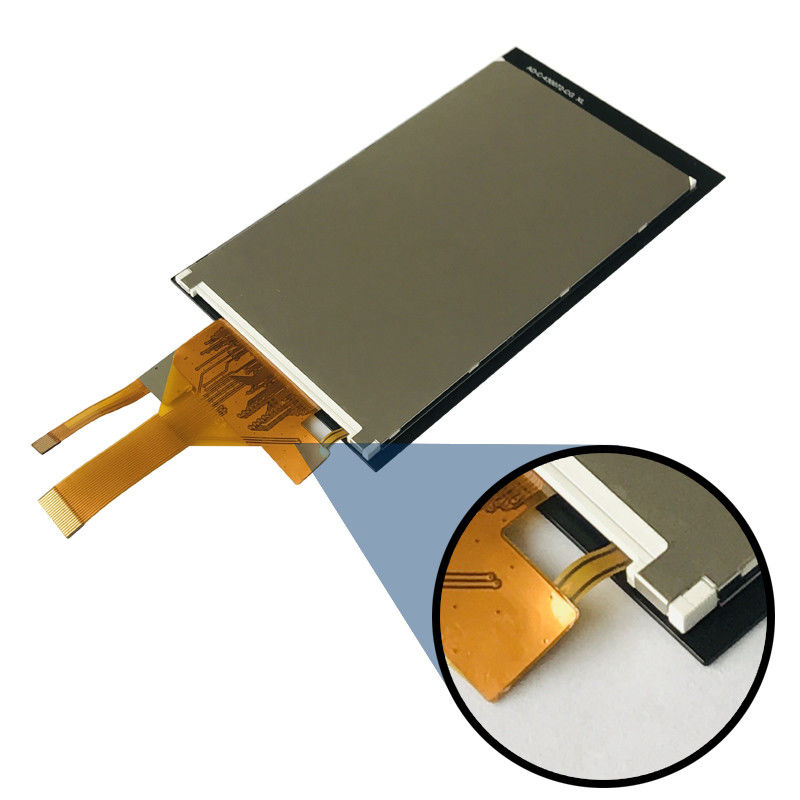

     ChengHao Display model CH430WV15A-CT is a color active matrix thin film

transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT

as a switching device. This model is composed of a TFT LCD panel, a driving IC,

a high brightness back-light, a capacitive touch panel and FPC.
     This TFT LCD has a 4.3 (vertical Screen)inch diagonally measured active display

area with WVGA (480 horizontal by 800 vertical pixel) resolution.
The driver used for this project is the NT35510 and can display 16M colors by 24

bit R.G.B. signal input. The driver is mounted on the glass and the interconnection

via FPC including components to drive the display module. Support RGB interface.
     In addition, FPC can also be customized according to customer requirements, such

as modifying back-light and CTP structure, interface definition, etc.
     RoHS Compliance & Halogen Free.



CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 2

CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 3



CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 4

CH430WV15A-CT Industrial Lcd Monitor Flat Panel 4.3" CTP 5













Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.





Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
