300cd m2 TFT LCD Touch Screen

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 2.4 Inch
Certification: ROHS、ISO9001、CE
Model Number: CH240QV23A-T
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 10-20working days
Payment Terms: T/T
Supply Ability: 300Kpcs/month

Detail Information

Dot Arrangement: Resolution 240X320 Display Mode: TN Angle Transmissive
Module Size: 42.72WmmX60.26HmmX3.35Tmm Active Area: 36.72WmmX48.96Hmm
Driver IC: ST7789V Interface: SPI /RGB
Back Light: Four White LED Color Filter Array: RGB -vertical- Stripe
High Light:

300cd m2 TFT LCD Touch Screen

,

2.4inch TFT LCD Touch Screen

,

300cd TFT Display Module

Product Description

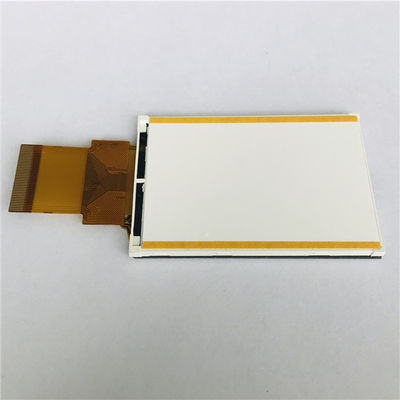

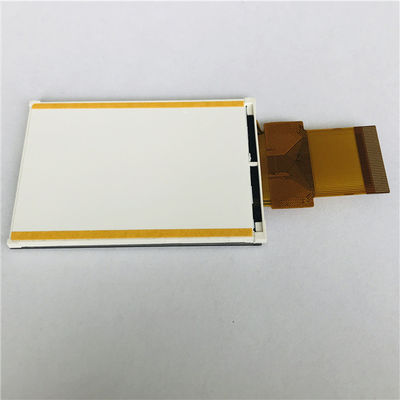

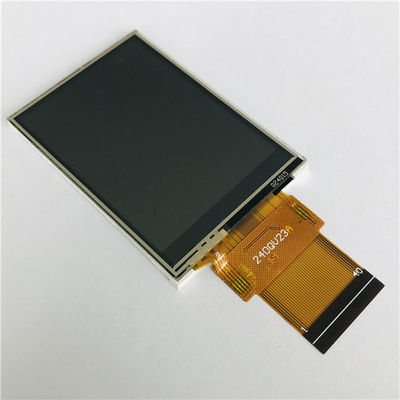

300cd TFT LCD Touch Screen



Driver IC ST7789V 2.4 Inch Tft Lcd Module Luminace 300cd/M2



Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your
requirement.(The express shipping time is about 3 to 7 working days.)
2) The tracking number will be informed after 1-3 working days the package delivered.
3) We will follow the shipment info after delivering. If you can't receive the goods on time, please contact with us, we will assist to find the solution as soon as possible.



Product Details:

MODEL NO. CH240QV23A-T
Module type 2.4"TFT + RTP
Display Mode TN/Transmissive/Normally white
Number of Dots 240*3(RGB)*320
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Module size 42.72(W)*60.26(H)*3.35(T)mm
TFT Active area 36.72(W)*48.96(H)mm
TFT Dot pitch 0.153(W)*0.153(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
Backlight Type White LED
Luminace 300cd/m2



Why Choose Chenghao?

1. We are a professional designer manufacturer of LCD module and capacitive touch module.
2. We have all products through aging, high and low temperature test, to ensure the stability of products.
3. We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4. We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5. We have 3 production lines, with shipment of more than 1,000,000 pieces per year.
6. Our products can support long-term supply,Maximum supply cycle is 6 years.
7. We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.



300cd m2 TFT LCD Touch Screen 0

Our Services:

1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
