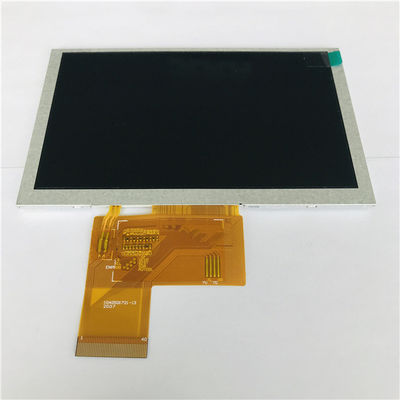

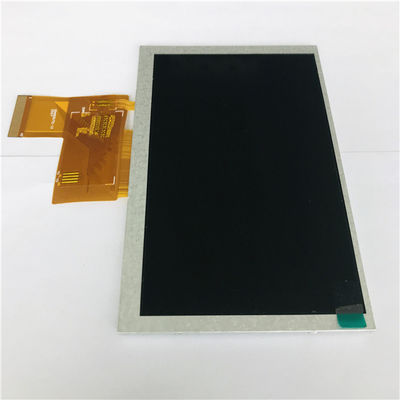

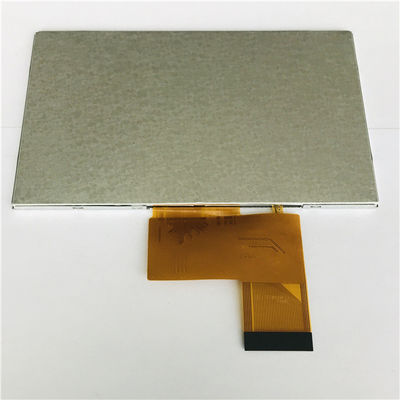

IPS High Brightness TFT Display

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 5.0 Inch
Certification: ROHS、ISO9001、CE
Model Number: CH500WV05B
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 200Kpcs/month

Detail Information

Size: 5 Inch Number Of Dots: 800*3(RGB)*480
Module Size: 120.7(W)*75.8(H)*3.0(T)mm Active Area: 108(W)*64.8(H)mm
Brightness: 1200cd/m2 Interface: 24-bit RGB Interface
TFT Dot Pitch: 0.135(W)*0.135(H)mm Display Mode: IPS/Transmissive/Normally Black
High Light:

IPS High Brightness TFT Display


5inch High Brightness TFT Display


1200cd High Brightness LCD

Product Description

IPS High Brightness TFT Display


5.0 Inch Tft Lcd Display IPS Viewing 800*3(RGB)*480 Resolution Lcd Screen


General Information:

Module type 5.0"TFT
Display Mode IPS/Transmissive/Normally Black
Number of Dots 800*3(RGB)*480
Viewing Direction 80/80/80/80
Module size 120.7(W)*75.8(H)*3.0(T)mm
TFT Active area 108(W)*64.8(H)mm
TFT Dot pitch 0.135(W)*0.135(H)mm
Interface 24-bit RGB interface
Backlight Type White LED
Luminace 1200cd/m2



Q1 : Are you manufactory or trade company?

A1: Shenzhen Chenghao Opelectronics Co., Ltd is a manufactory, We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q2: What payment methods you support ?

A2: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and bank transfer.

Q3: What express service can I choose ?

A3: We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?

A4: Yeah , Don't worry , All the order will be tested ok before shippment .


Chenghao shares LCD viewing angle:

LCD is a kind of backlight display device, and its light is provided by the backlight behind the LCD module, which inevitably leads to the best viewing angle of LCD - face up. When you view from other angles, because the backlight can penetrate through the adjacent pixels and enter the human eye, it will cause color distortion. The undistorted range is the viewing angle of the LCD. The angle of view of LCD is divided into horizontal angle and vertical angle, and the horizontal angle is generally larger than the vertical angle. At present, as long as the horizontal perspective reaches 120 degrees and the vertical perspective reaches 140 degrees, it can meet the application needs of most users. The latest LCD panel is produced with wide viewing angle technology, which can reach 140 degrees up and down and 150 degrees left and right, reducing the inconvenience caused by small viewing angle. Of course, this performance for CRT display close to 180 degrees of view can not be compared, but for most applications, it is more than enough.

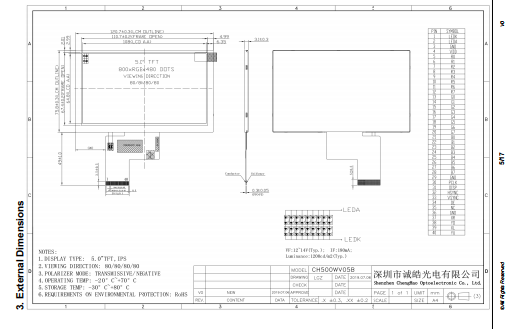

IPS High Brightness TFT Display 0

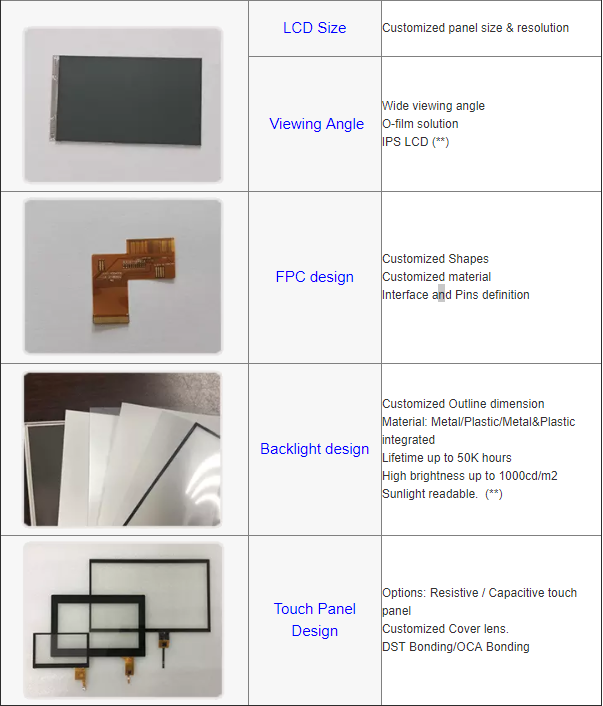

Chenghao Dispaly(CH Dispaly) not only offers a wide range of standard TFT LCD modules, but also provide Custom products with a variety of choices to meet customers’ needs.

IPS High Brightness TFT Display 1


Packaging & Shipping :
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements


Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.


Our services:


1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
