MIPI TFT LCD Capacitive Touchscreen

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 4 Inch TFT
Certification: ROHS、ISO9001、CE
Model Number: CH400WV13A-CT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 300Kpcs/month

Detail Information

Size: 3.97 Inch TFT Dot Arrangement: 480(RGB)×800
Display Mode: IPS Viewing Module Size: 56.34(W)*95.70(H)×1.8(T)
Active Area: 51.84(W)*86.4(H) M Interface: TFT:2-lane MIPI CTP:I2C
Touth: Capacitive CTP Type: G+F+F
High Light:

MIPI TFT LCD Capacitive Touchscreen

,

ST7701S LCD Display Module

,

ST7701S TFT LCD Capacitive Touchscreen

Product Description

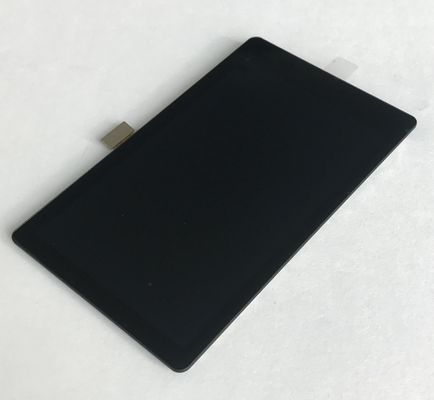

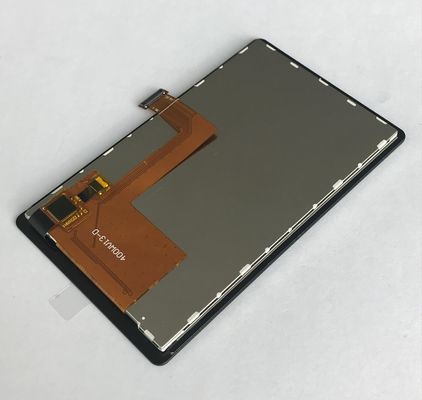

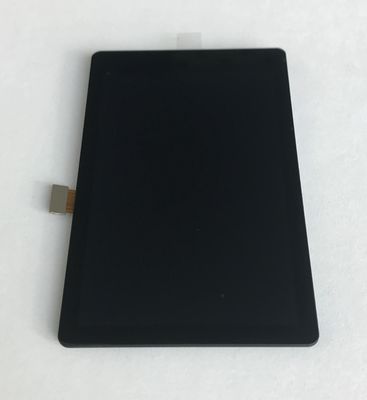

MIPI TFT LCD Capacitive Touchscreen



3.97 inch (Or 4 inches) 480*800 IPS TFT LCD display module MIPI with CTP ST7701S



If you don't find a suitable product in our Google platform, please contact our salesman, because we have thousands of products, we can help me solve the problems you encounter.



Specification:

MODEL NO. CH400WV13A-CT
Module type 3.97"TFT + CTP
Display Mode IPS / Transmissive / Normally Black
CTP type G+F+F
Number of Dots 480*3(RGB)*800
Viewing Direction 80/80/80/80
Module size 56.34(W)×95.70(H)×1.8(T)
TFT Active area 51.84(W)*86.4(H)mm
TFT Dot pitch 0.108(W)*0.108(H)mm
Interface TFT:2-lane MIPI CTP:I2C
Backlight Type White LED
Luminace

350cd/m2



Prduct Application​:

Chenghao Optoelectronics focusing on the production and development of color TFT LCD modules, can provide one-stop color TFT module solutions for various shapes, and can change FPC, pin definition, driver and motherboard according to customers' requirements. High voltage or low voltage can be achieved, the working temperature can be achieved ultra-wide temperature up to -40℃-90℃, the viewing angle can be achieved from 6:00 O’clock to full IPS.

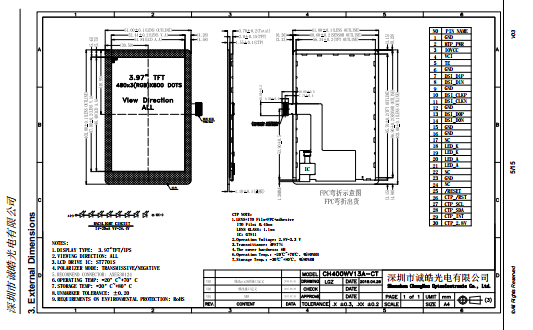

Drawing:

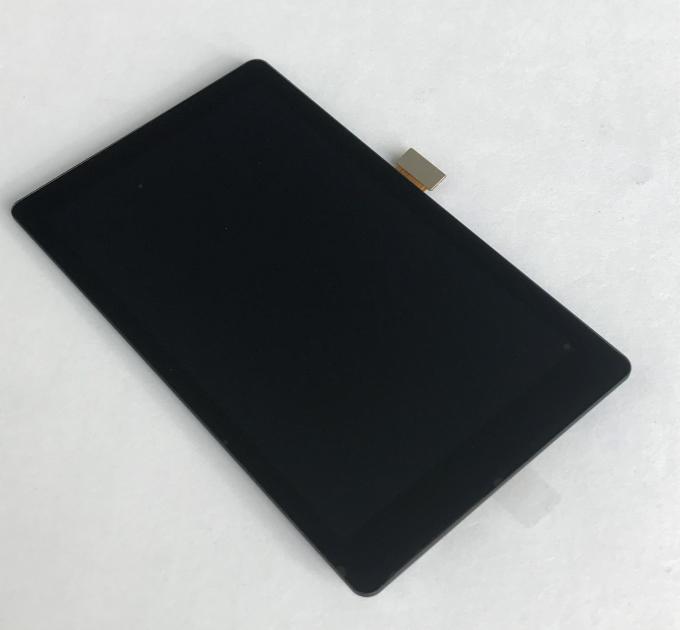

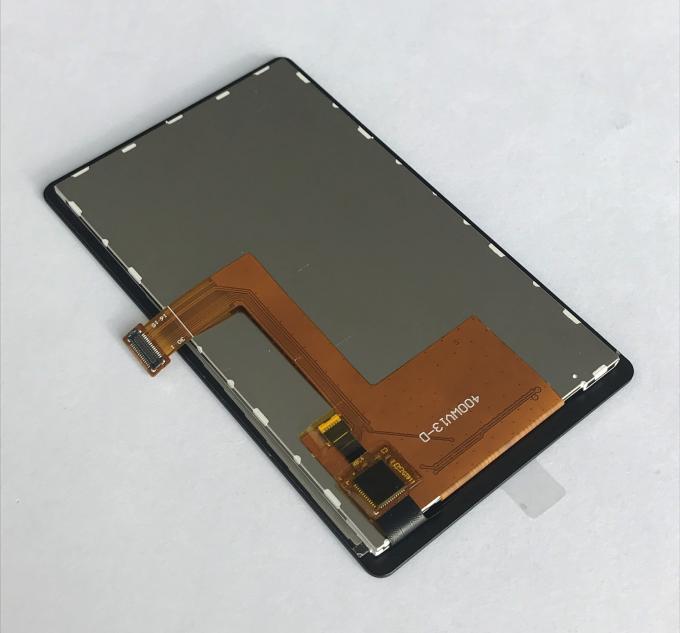

MIPI TFT LCD Capacitive Touchscreen 0



MIPI TFT LCD Capacitive Touchscreen 1

MIPI TFT LCD Capacitive Touchscreen 2



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
