480X480 TFT LCD Monitor

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 2.1 Inch IPS
Certification: ROHS、ISO9001、CE
Model Number: CH210WV01A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 50Kpcs/month

Detail Information

Size: 2.1INCH TFT Dot Arrangement: 480X480
Display Mode: Ips Module Size: 56.18(W)×59.71(H)×2.3(T)
Active Area: φ53.28 M Brightness: 250cd/m2
Interface: 3line SPI + RGB 18bit Operating Temperature: -20 +70
Storage Temperature: -30 +80
High Light:

480X480 TFT LCD Monitor

,

3line SPI TFT LCD Monitor

,

3 line SPI IPS Lcd Screen

Product Description

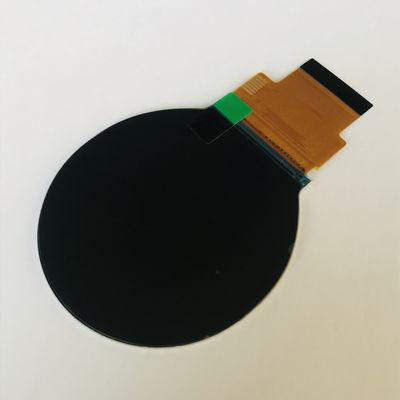

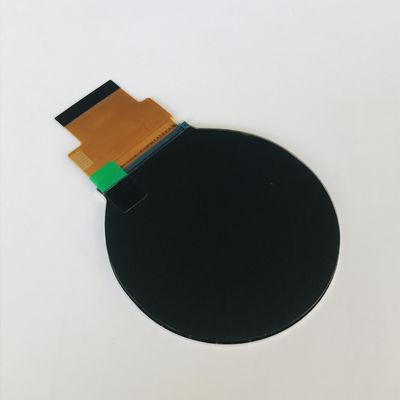

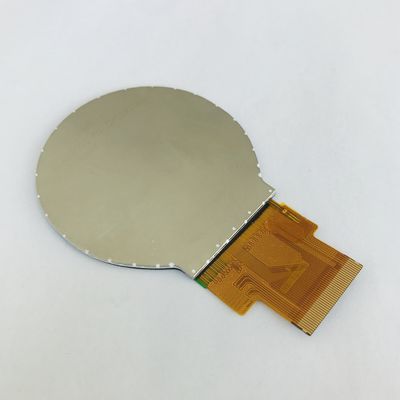

480X480 TFT LCD Monitor

2.1 Inch Tft Ips Lcd Screen 480*480 Custom


Product Specification:
This products is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit.
The module display area contains pixels.
This product accords with RoHS environmental criterion.


Product Application​:
Our products are widely used for communications, household appliances, industrial control, medical equipment, POS machine, instruments and meters, automotive, electricity meter, GPS navigation, digital photo frame, tablet PC, financial equipment, consumer equipment, information appliances, cultural&educational entertainment, attendance machine, fingerprint instrument, access control machine, stock machine, interphone, video doorbell, learning machine, reading machine and so on.

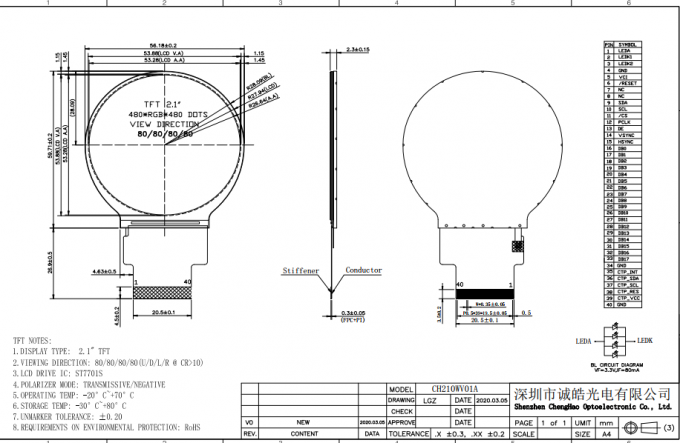

Drawing:
480X480 TFT LCD Monitor 0


Model :CH210WV01A
LCD type2.1’’TFT
Dot arrangement480x480
Display modeIPS
Driver ICST7701S
Module size56.18(W)×59.71(H)×2.3(T)
Active areaφ53.28
Interface3line SPI + 18bit RGB
Operating temperature-20 ~ +70
Storage temperature-30 ~ +80



If you don't find a suitable one on our platform, please contact us, because there are too many kinds of LCD screens, and some of them are not uploaded on the platform in time.TKS
