MCU TFT LCD Monitor

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 2.4 Inch TFT
Certification: ROHS、ISO9001、CE
Model Number: CH240QV29A-T
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 200Kpcs/month

Detail Information

Size: 2.4" TFT Dot Arrangement: 240*320
Display Mode: TN / Transmission / Normally White Module Size: 42.72(W)×60.26(H)×2.35(T)
Active Area: 36.72(W)×48.96(H) Brightness: 250cd/m²
Interface: 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080-series System Interface 6-/16-/18-bit RGB Interface Operating Temperature: -20 ~ +70
Storage Temperature: -30 ~ +80 Touch: Resistance
High Light:

MCU TFT LCD Monitor

,

240x320 TFT LCD Monitor

,

MCU Monitor TFT LCD

Product Description

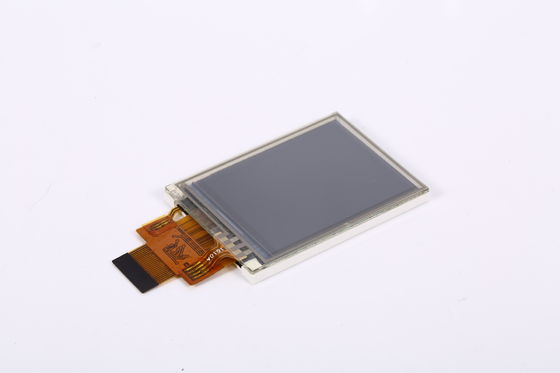

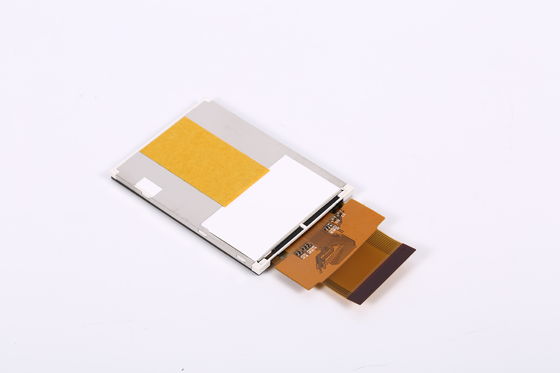

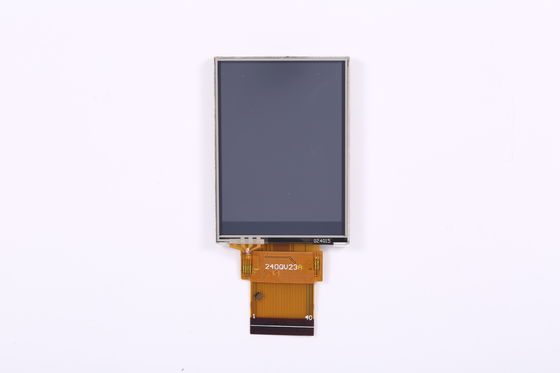

MCU TFT LCD Monitor



2.4" TFT LCD Module IPS 240*320dots/8bit 9bit 16bit 18bit 8080 MCU Interface



Product Specification:

1. The TFT is 2.4 inch  screen, the resolution is 240*320, and the effect is tn

2. It consists of LCD panel, driver ic, FPC and backlight unit.

3. Different brightness backlight and FPC interface definition can be customized according to your requirements

4. Capacitive & Resistive touch panel available for your option.

5. Experienced R & D team to customize solutions for you.

6. CE,RoHS compliant.

7. No MOQ requirement.

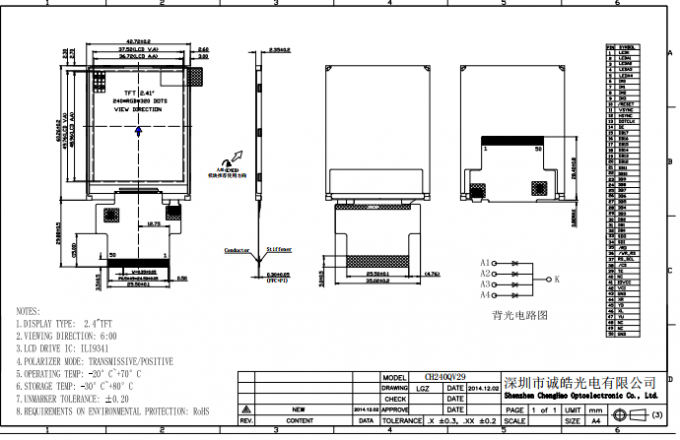

Drawing:

MCU TFT LCD Monitor 0

MODEL NO. CH240QV29A-T
Module type 2.4"TFT + RTP
Display Mode TN/Transmissive/Normally white
Number of Dots 240*320
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Module size 42.72(W)*60.26(H)*3.5(T)mm
TFT Active area 36.72(W)*48.96(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
Luminace 230cd/m2



Prduct Application​:

Our products are widely used for communications, household appliances, industrial control, medical equipment, POS machine, instruments and meters, automotive, electricity meter, GPS navigation, digital photo frame, tablet PC, financial equipment, consumer equipment, information appliances, cultural&educational entertainment, attendance machine, fingerprint instrument, access control machine, stock machine, interphone, video doorbell, learning machine, reading machine and so on.



Packaging & Shipping
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.



Our services:

1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
