MCU High Brightness TFT Display

Product Details:
Place of Origin: ShenZhen, China
Brand Name: 2.8 Inch IPS TFT
Certification: ROHS、ISO9001、CE
Model Number: CH280QV22B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: /
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 200Kpcs/month

Detail Information

Size: 2.8" TFT Dot Arrangement: 240*320
Display Mode: IPS / Transmissive / Normally Black Module Size: 50.0(W)×69.2(H)×2.4(T) M
Active Area: 43.2(W)×57.6(H) Brightness: 1000cd/m²
Interface: 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080-series System Interface SPI + 6-/16-/18-bit RGB Interface Operating Temperature: -20 ~ +70
Storage Temperature: -30 ~ +80
High Light:

MCU High Brightness TFT Display

,

1000cd High Brightness TFT Display

,

MCU Sunlight Readable Screen

Product Description

MCU High Brightness TFT Display



2.8" TFT LCD Module 240*320 dots IPS LCD TFT display



Product Specification:

1. The TFT is 2.8 inches, the resolution is 240 * 320, and the display effect is IPS.

2. It has no touch function,

3. Its interface is compatible with SPI / MCU interface.

4. The brightness is above 1000cd / m2.

5. Visible in the sun.

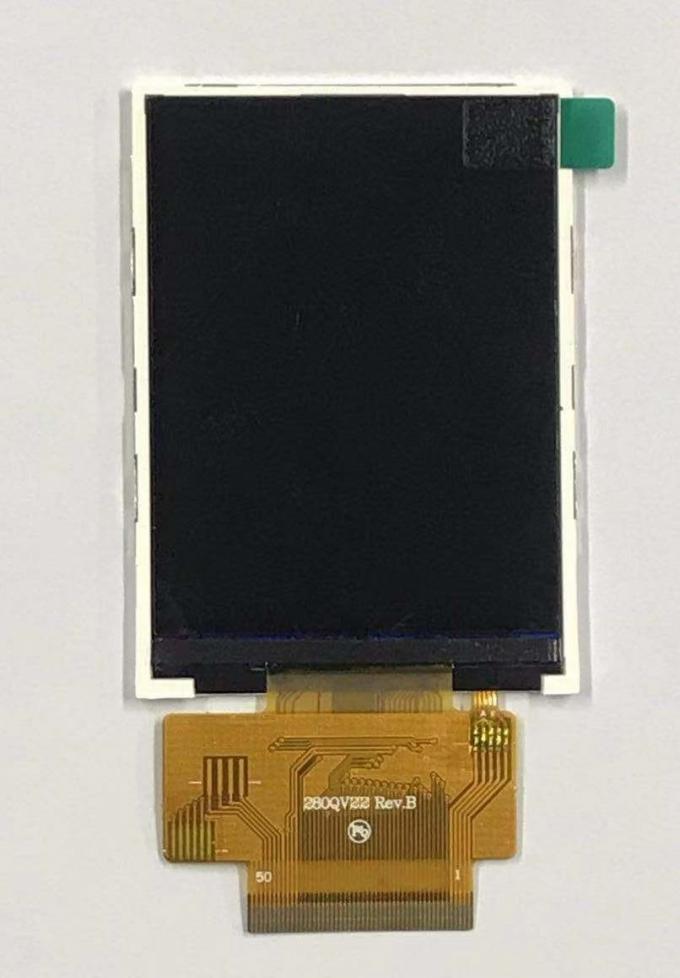

Front view of product

MCU High Brightness TFT Display 0

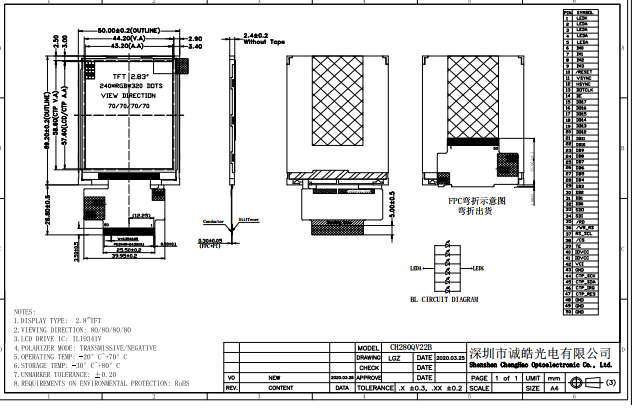

Drawing:

MCU High Brightness TFT Display 1

MODEL NO. CH280QV22A-T
Module type 2.8"TFT LCD
Display Mode IPS
Number of Dots 240*320
Module size 50.0(W)*69.2(H)*3.5(T)mm
TFT Active area 43.2(W)*57.6(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080-series system interface
16-/18-bit RGB interface
Luminace 260cd/m2



Product Application​:

Our products are widely used for communications, household appliances, industrial control, medical equipment, POS machine, instruments and meters, automotive, electricity meter, GPS navigation, digital photo frame, tablet PC, financial equipment, consumer equipment, information appliances, cultural&educational entertainment, attendance machine, fingerprint instrument, access control machine, stock machine, interphone, video doorbell, learning machine, reading machine and so on.



Packaging & Shipping
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements



Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.





Our services:



1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.

2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.

4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.

5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.

6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.

7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
