10pin Small Lcd Display Module 320*480 With 4line 8bit SPI Interface

Product Description

10pin Small Lcd Display Module 320*480 With 4line 8bit SPI Interface

1. Specification

2. Description

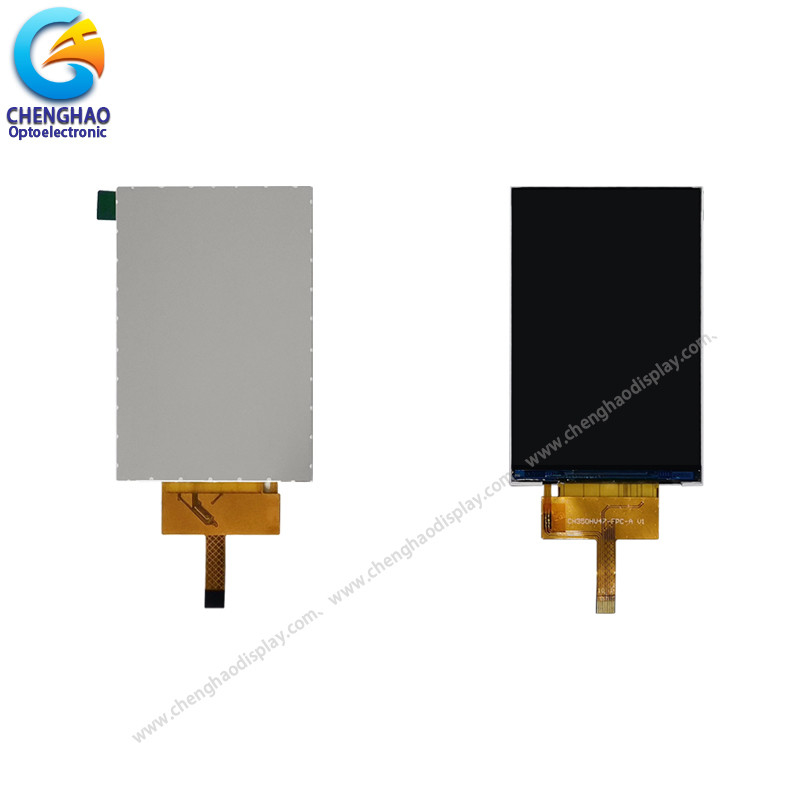

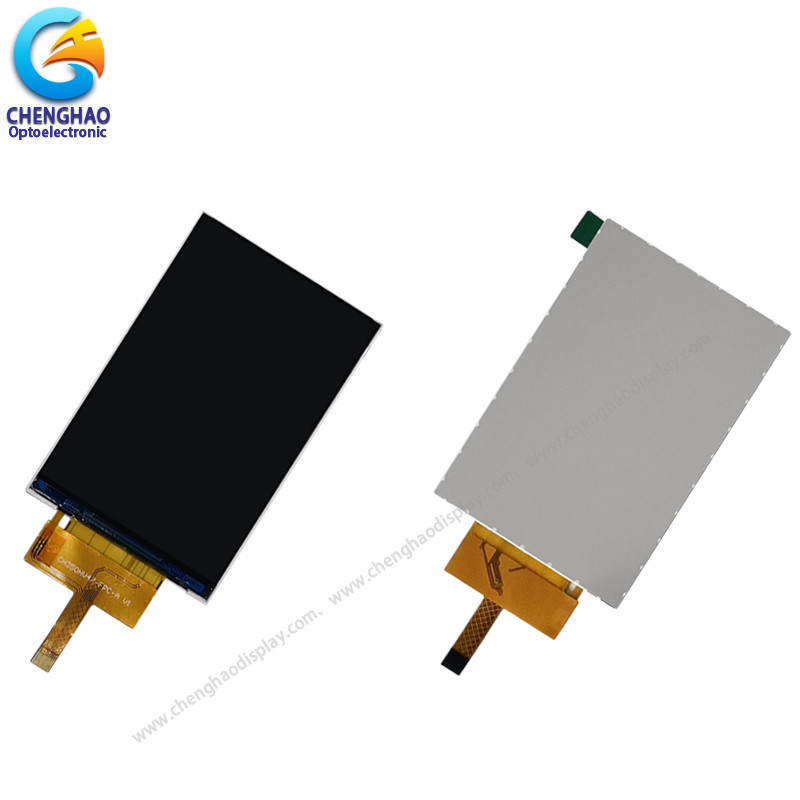

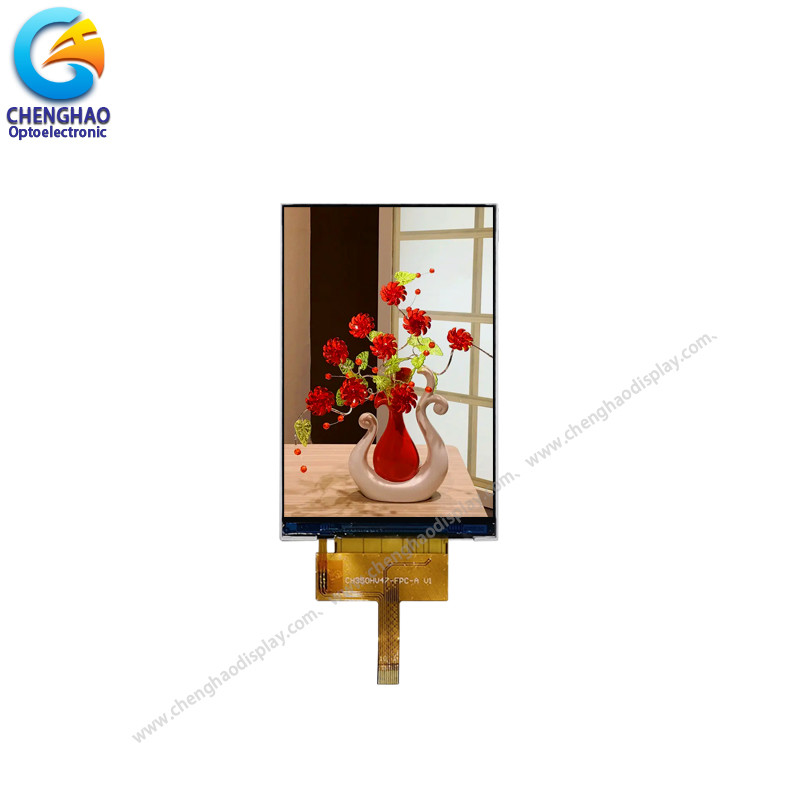

ChengHao Display model CH350HV47B is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
There is a active display area of this tft lcd panel measuring 3.5 inches diagonally with a resolution of 320*480*3-RGB dots.
The driver used for this project is the ST7796 and can display 262k/65k colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
In addition, the tft lcd 320x480 can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

3. Drawings

Notes:
(1) Display Type : 3.5"IPS
(2) Viewing Direction : Alii Viewing Direction
(3) Lcd Drive IC :  ST7796S
(4) Polarizer Mode : Transmissive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

Product Name: 10pin Small Lcd Display Module 3.5inch 320*480 With 4line 8bit SPI Interface

LCD type: 3.5: IPS
Dot arrangement: 320(RGB)×480 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmission / Normally Black
Viewing Direction: 80/80/80/80
Driver IC: ST7796S
Module size: 53.16(W)×81.74(H)×2.17(T) mm
Active area: 48.96(W)×73.44(H) mm
Dot pitch:0.153(W)×0.153(H) mm
Interface: 4line 8bit SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light: 8 White LED
Weight: TBD g

5. Application

6. FAQ

1.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.

2.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.

3.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.

4. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.

5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
