All Viewing Angle IPS TFT LCD Display 3.97" 800x480 With 2 Lane MIPI DSI Interface

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV22A

Detail Information

Product Name: All Viewing Angle IPS TFT Lcd Module Size: 57.14(W)×96.85(H)×1.83(T) Mm
TFT Active Area: 51.84(W)×86.4(H) Mm Dot Pitch: 0.108(W)×0.108(H) Mm
Interface: 2-lane_MIPI DSI Operating Temperature: -20 ~ +60 ℃
Storage Temperature: -30 ~ +70 ℃
High Light:

800x480 IPS TFT LCD Display

,

3.97" IPS TFT LCD Display

,

MIPI DSI IPS TFT LCD Display

Product Description

All Viewing Angle IPS TFT Lcd 3.97" 800x480 With 2 Lane MIPI DSI Interface



1. Specification



ITEM STANDARD VALUES UNITS
LCD type 3.97”TFT --
Dot arrangement 800x480 dots
Driver IC ST7701S --
Module size 57.140(W)*96.85(H)*1.83(T) mm
Active area 51.84(W)*86.4(H) mm
Dot pitch
0.108(W)×0.108(H)
mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light White LED  --
Weight TBD g





2. Description



ChengHao Display model CH400WV22A is a TFT type small size Vertical lcd, using IPS display technology, with all viewing directions. The color TFT display has an active display area with a diagonal length of 3.97 inch, supports display 800(RGB)x480 Resolution's video footage. The ST7701S fixed on the tft lcd glass panel is the driver IC of this module. It supports 2-lane_MIPI DSI interface and can display 16M colors.

For this 3.97 inch IPS tft display module, we can modify the backlight and FPC for you according to your requirements, and the touch function can also be installed. If this tft display can't meet your requirements, you can ask us for more model information similar to CH400WV22A by email, or ask us to provide customized solutions for your project.





3. Drawings



Notes:
(1) Display Type : IPS TFT
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC :  ST7701S
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

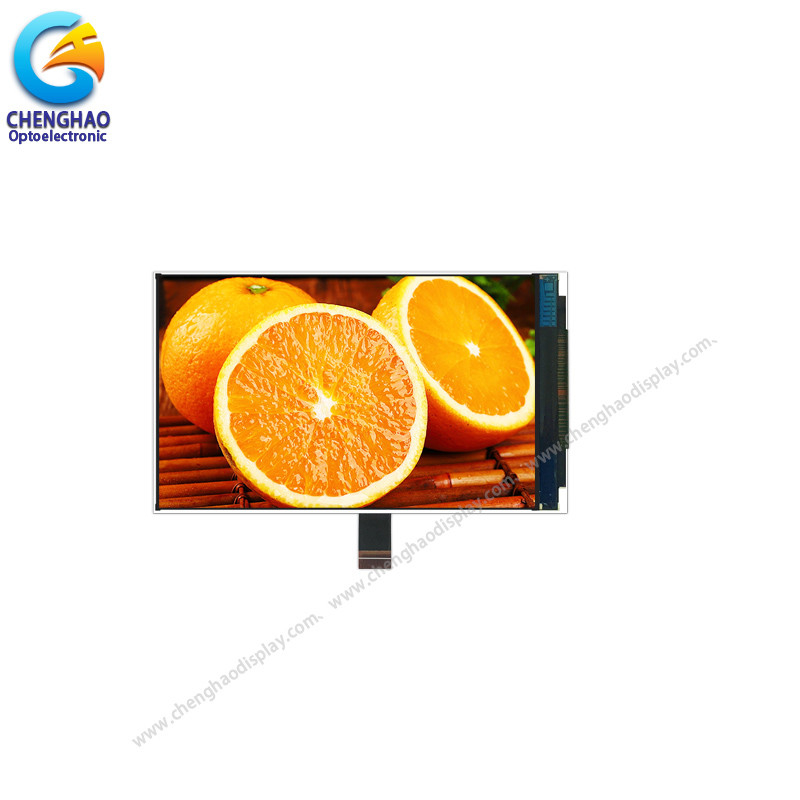

All Viewing Angle IPS TFT LCD Display 3.97" 800x480 With 2 Lane MIPI DSI Interface 0









4. Quick Detail



* LCM name:  All Viewing Angle IPS TFT Lcd 3.97" 800x480 With 2 Lane MIPI DSI Interface

* Model: CH400WV22A
* Lcm Size.:  3.97 inch
* Display Type:  3.97”TFT
* Display colors: 16.7M
* Number of Dots: 800*480
* TFT Dot Pitch : 0.108(W)×0.108(H) mm

* Viewing Angle:  All Viewing Angle

* Driver IC: ST7701S
* Display mode: IPS/transmissive/ Normally black
* Module size: 57.14(W)×96.85(H)×1.83(T) mm

* TFT Active Area: 51.84(W)×86.4(H) mm

* Luminance: 450 cd/m2

* Contrast: 800

* TFT Interface Type: 2-lane_MIPI DSI

* Pin Number:  25
* Backlight type : White LED
   Backlight:  6 LED



5. Application

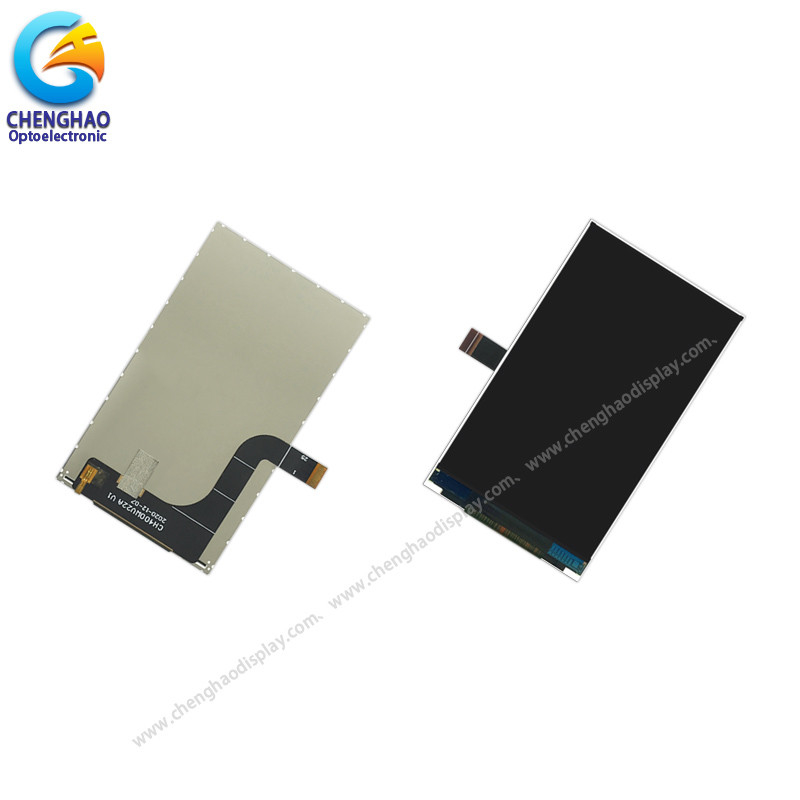

All Viewing Angle IPS TFT LCD Display 3.97" 800x480 With 2 Lane MIPI DSI Interface 1
