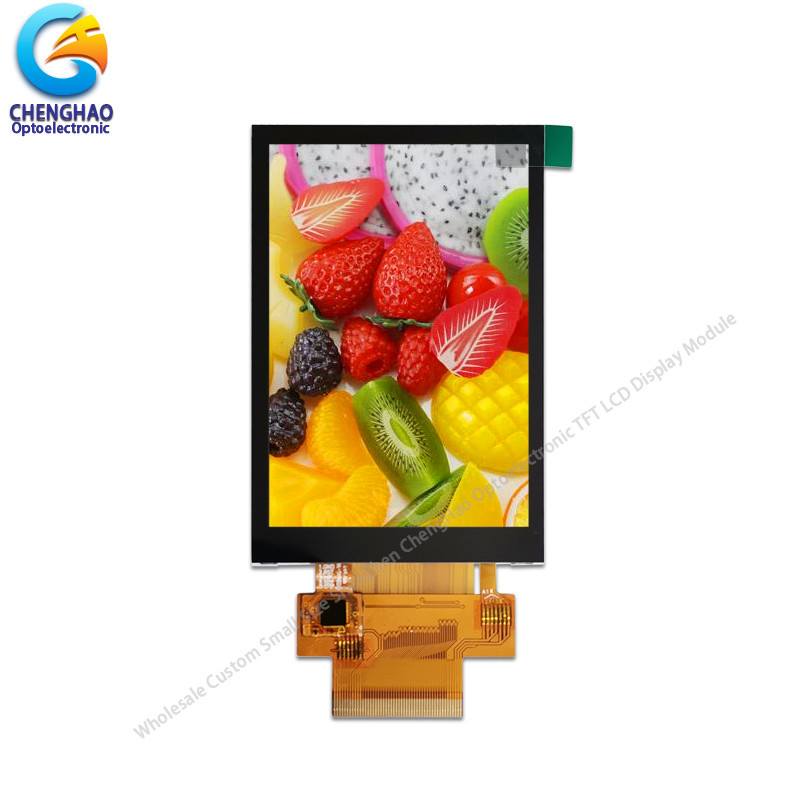

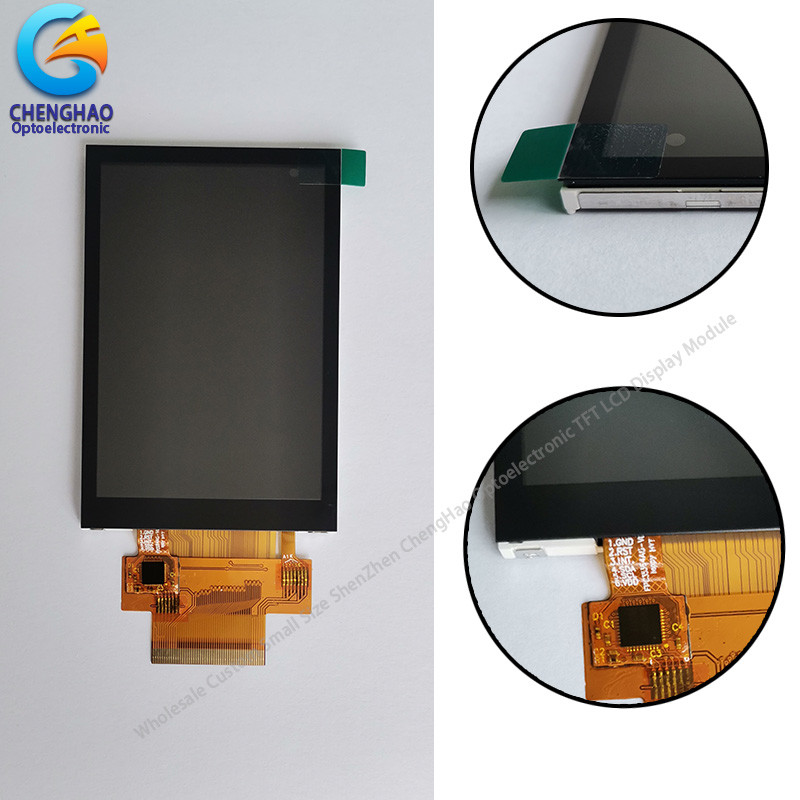

3.5 Inch 320x480 IPS TFT Display Module With Capacitive Touch Panel

Minimum Order Quantity : 1PCS Price : Negotiation
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV40A-CT

Detail Information

Product Name: 3.5 Inch Small TFT Dsipaly Module LCD Type: 3.5" TFT With CTP
Dot Arrangement: 320(RGB)×480 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: IPS/ Transmission/ NormallyBlack Viewing Direction: 80/80/80/80
TFT Driver IC: ILI9488 Back Light: 280 Cd/m2
High Light:

ILI9488 Small LCD Touch Screen

,

IPS Transmission Small LCD Touch Screen

,

CTP SPI TFT Lcd Panel

Product Description





1. Specification



ITEM STANDARD VALUES UNITS
LCD type 3.5’’TFT --
Dot arrangement 320(RGB)× 480 dots
Driver IC ILI9488 --
Module size 56.54(W)×84.96(H)×3.97(T) mm
Active area 48.96(W)×73.44(H) mm
Dot pitch 0.153(W)×0.153(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 6 White LED In Paralle --
Weight TBD g





2. Description



ChengHao Display model CH350HV40A-CT is 3.5 inch IPS TFT Display Module with Capacitive touch panel. This model is composed of a TFT LCD panel, a driving IC, a back-light, Capacitive Touch Panel and FPC.

This TFT LCD has a 3.5 ( vertical screen ) inch diagonally measured active display area with 320 horizontal by 480 vertical pixel .

The driver used for this project is the ILI9488 and can display 262K 65K / 16.7M colors by signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support SPI / RGB Multi-interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings



Notes:
(1) Display Type : 3.5 inch TFT+CTP
(2) Viewing Direction : All Viewing Angle
(3) Lcd Drive IC : ILI9488
(4) Polarizer Mode : Transmissive/ Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



3.5 Inch 320x480 IPS TFT Display Module With Capacitive Touch Panel 0





4. Quick Detail



* LCM name: 3.5 Inch 320x480 Resolution IPS TFT Display Screen
* Model: CH350HV40A-CT
* Lcm Size.: 3.5 inch
* With touch panel or not: Yes
* Touch type: Capacitive / Resistive Touch Panel ( Optional )
* Display Type: 3.5"TFT
* Display colors: 262K (Optional)
* Number of Dots: 320*480 dots
* TFT Dot Pitch : 0.153×0.153 mm
* Viewing Angle: 80/80/80/80
* Driver IC: ILI9488
* Display mode: IPS/ Transmission/ NormallyBlack
* Module size: 56.54×84.96×2.4mm
* TFT Active Area: 48.96×73.44mm
* Luminance: 300 Nits
* Contrast: 800 : 1
* Support Interface Type:

4-lines_8bit SPI

3-lines_9bit SPI

8 bit 8080 system interface

9 bit 8080 system interface

16 bit 8080 system interface

18 bit 8080 system interface

SPI +16-bit RGB interface

SPI +18-bit RGB interface



* Pin Number: 50 pins
* Pin pitch: 0.3~0.4 mm
* Input voltage: 3.2V
* Backlight type and color: LED backlight/white
   Backlight: 6 LED parallel





5. Application





3.5 Inch 320x480 IPS TFT Display Module With Capacitive Touch Panel 1








6. Our Service



(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.
