4.3 Inch TFT NT35510 480*800 Small LCD Touch Screen For POS Machine

Product Description

4.3 Inch TFT NT35510 480*800 Small LCD Touch Screen For POS Machine

4.3 Inch TFT Touch Display NT35510 480*800 Lcd Display Oem For Pos Machine

1. Specification

2. Description

ChengHao Display model CH430WV17A-CT is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch panel and FPC.

This TFT LCD has a 4.3 (16:9) inch diagonally measured active display area with WVGA (480 horizontal by 800 vertical pixel) resolution.

The driver used for this project is the NT35510 or compatible and can display 16M colors by 24 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.

RoHS Compliance & Halogen Free.

3. Drawings

Notes:
(1) Display Type : TFT
(2) Viewing Direction : All
(3) Lcd Drive IC : NT35510
(4) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

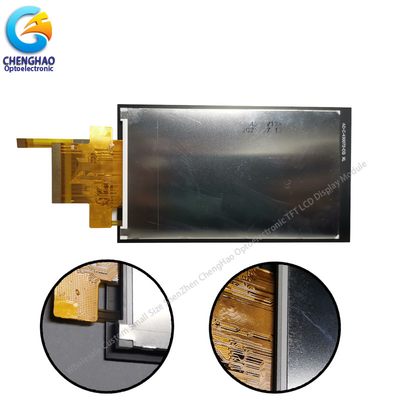

* LCD name: 4.3 Inch TFT Touch Display NT35510 480*800 Lcd Display Oem For Pos Machine
* Part No.: CH430WV17A-CT
* Size.: 4.3 inch
* With touch panel or not: Yes
* Touch type: Capacitive
* Display type: TFT
* Display colors: 16.7M
* Resolution (pixels): 480x800 dots

* Pixel pitch: 0.117(W)×0.117(H) mm
* Viewing direction: All Viewing Angle
* Controller IC: NT35510
* Display mode: IPS/ Transmissive/ NormallyBlack
* Overall size: 66.26(W)×113.9(H)×3.35(T) mm
* TFT / CTP Active Area: 56.16(W)×93.6(H) mm

* Luminance: 400 cd/m2
* Contrast: 800:1
* Interface type: 8-/16-/18-/24-biti80-system interface
                          SPI+16-/18-/24-bitRGB interface
                          MIPI DSI
* Pin NO.: 20pins
* Pin pitch: 0.5mm
* Connecting type: Connector type
* Input voltage: 3.3V
* Backlight type and color: LED backlight/white
  Backlight: 8White LED in serial
  If=20mA, Vf =25.6
* LED Life span: 20000h

5. Application

Products are widely used in general communications, household appliances, industrial control, medical equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communication electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine, stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and so on .

6. Products quality assurance

(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
