1.47" Tiny LCD Display All Viewing Angle With 4 Lines 8bit SPI Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH147QV01A

Detail Information

Product Name: 1.47" Tiny LCD Display Resolution: 172*320 Dots
Size: 1.47 Inch Overall Size: 19.39(H)×36.28(V)×1.46(T) Mm
Active Area: 17.3892(H)×32.352(V)mm Pixel Pitch: 0.1011(H)×0.1011(V)mm
Backlight Type And Color: Backlight Type And Color Weight: 2.7 G
High Light:

1.47" Tiny LCD Display

,

1.47" Tiny LCD Screen

,

1.47" Tiny LCD Monitor

Product Description

1.47" Tiny LCD Display All Viewing Angle With 4 Lines 8bit SPI Interface



1.47" Tiny LCD Display All Viewing Angle 172320 TFT With 4-Lines_8bit SPI Interface



1. Specification



1.47inch Mini TFT Display 1.47" Tiny LCD Display --
Dot Arrangement 172*320 dots
Color filter array RGB vertical stripe --
Display mode IPS/ Transmissive / NormallyBlack --
Viewing Angle Free Viewing angle --
Outline Dimension 19.39(H)×36.28(V)×1.46(T) mm
Display Area 17.3892(H)×32.352(V) mm
Interface 4-lines_8bitSPI --



2. Description

* 1.47" Tiny LCD Display

* CH147QV01A is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 172*320 resolution TFT LCD module.

* Backlight with 3White LED

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

* Can adapt to an ultra-wide working temperature of -20~+70 degrees Celsius .



3. Drawings

Notes:
(1) Display Type : 1.47-inch TFT
(2) Viewing Direction : Free viewing angle
(3) Lcd Drive IC :ST7789V3
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

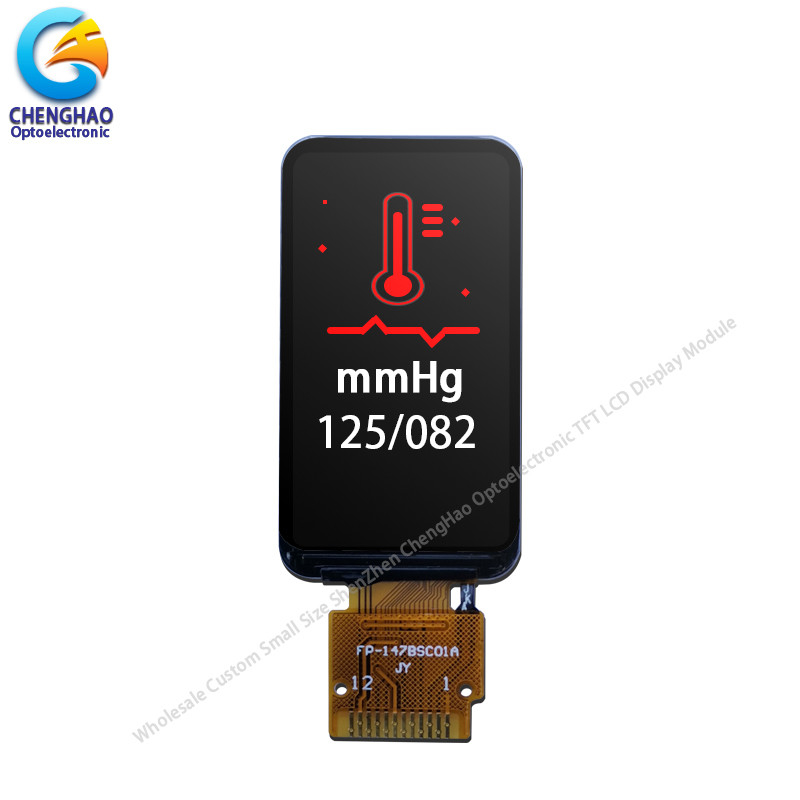

1.47" Tiny LCD Display All Viewing Angle With 4 Lines 8bit SPI Interface 0


4. Application



Products are widely used in general communications, household appliances, industrial control, medical equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communication electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine, stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and so on .

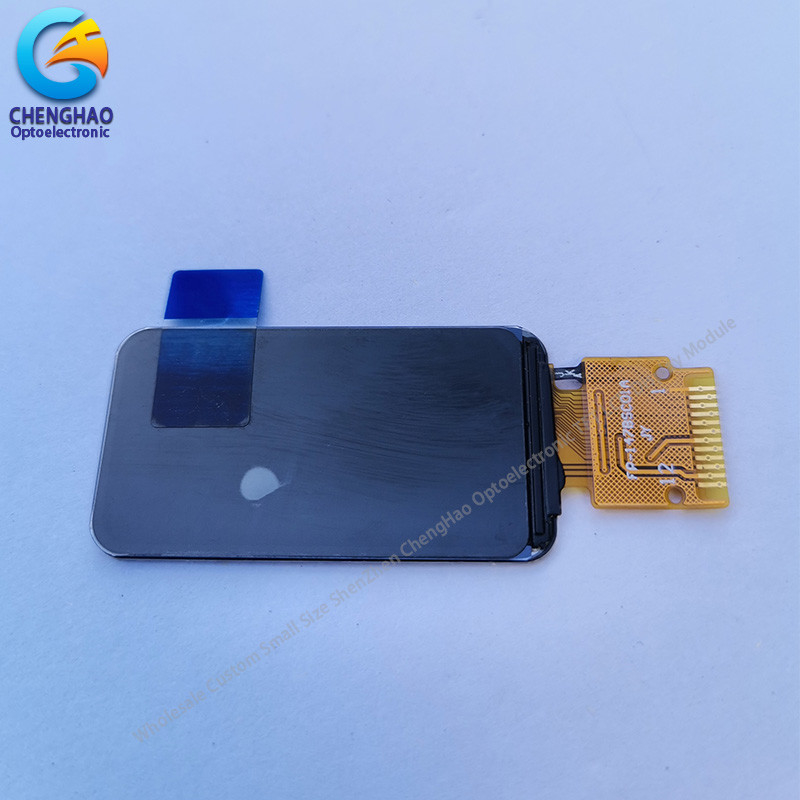

1.47" Tiny LCD Display All Viewing Angle With 4 Lines 8bit SPI Interface 1


5. Our Service



(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you



6. FAQ



Q: Payment methods?
A: T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.



Q: What is the lead time of the products?
A: Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production



Q: How long is the warranty period?
A: Generally the warranty period is one year. It depends on different products.



Q: What is the Product MOQ?
A: Different product has the different MOQ, please contact us sales for detailed information.



Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.



Q: Can you provide OEM service?
A: yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply



Q: How can I trust your product quality?
A: The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
