3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350HV37A-CT

Detail Information

LCD Type: 3.5 Inches Surface Treatment: 3H
CTP Driver IC: FT6236 Module Size: 56.54(W)×84.96(H)×3.97(T) Mm
TFTActive Area: 48.96(W)×73.44(H) Mm CTPActive Area: 48.96(W)×73.44(H) Mm
Dot Pitch: 0.153(W)×0.153(H) Mm Interface: 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit8080system Interface 16-/18-bitRGB Interface
High Light:

3.5" CTP Industrial Capacitive Touch Screen

,

Industrial Capacitive Touch Screen 320x480

,

300cd/m2 TFT LCD Display Module

Product Description

3.5 Inches Industrial Capacitive Touch Screen Panel 320*480 Small TFT

LCD Display Module

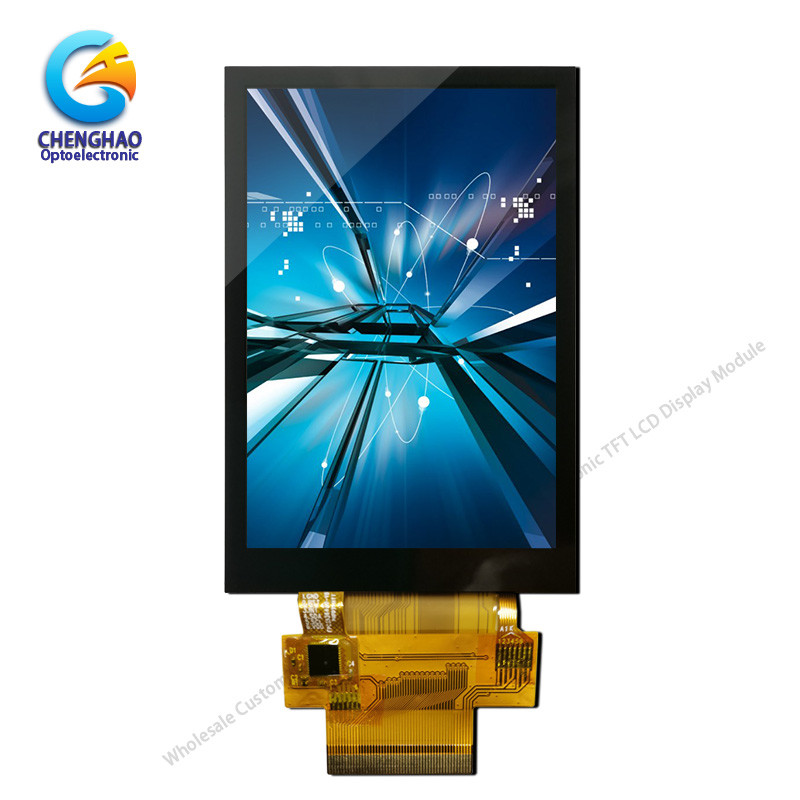

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 0



LCD type 2.4’’TFTWith CTP
Surface Treatment 3H
CTP Driver IC FT6236
Module size 56.54(W)×84.96(H)×3.97(T) mm
TFT Active area 48.96(W)×73.44(H)
CTP Active area 48.96(W)×73.44(H)
Dot pitch 0.153(W)×0.153(H)
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit8080system interface
16-/18-bitRGB interface
Luminace 300cd/m2


1> ISO9001 certificated, Factory Direct Supplied
Company Strenghth:



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time

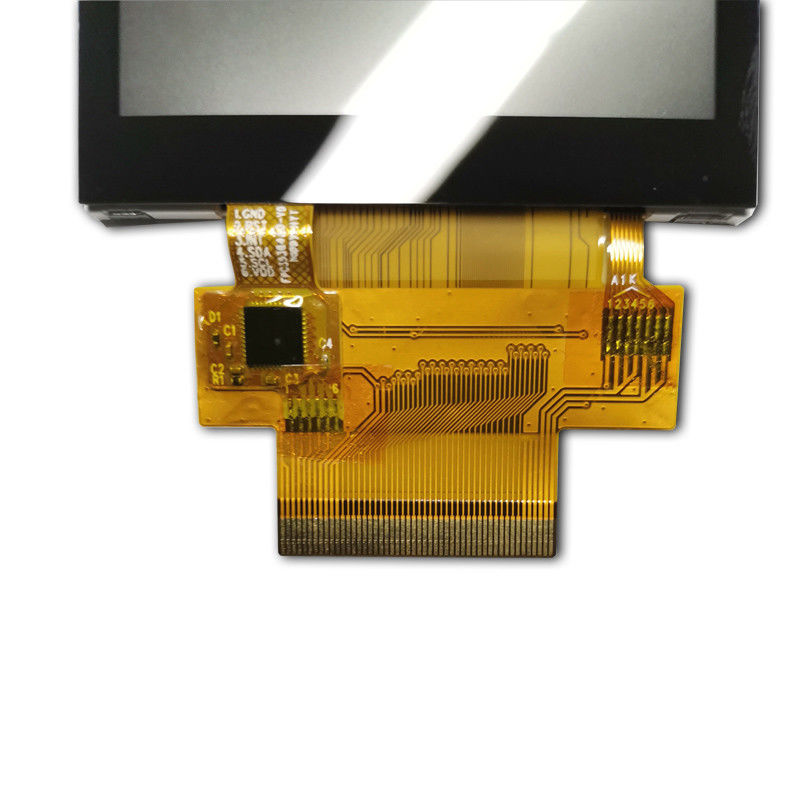

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 1

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 2

##ChengHao Display model CH350HV37A-CT is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving circuit, a high brightness back-light, a capacitive

touch screen and FPC.
##The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)

that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch diagonally

measured active display area with HVGA (320 horizontal by 480 vertical pixel) resolution.
##The driver used for this project is the ILITEK ILI9488 or compatible and can display 262K colors

by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC

including components to drive the display module. Support SPI, MCU, SPI + RGB interface.
##In addition, FPC can also be customized according to customer requirements, such as modifying

FPC and LENS structure, interface definition, etc.
##RoHS Compliance & Halogen Free.

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 3



3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 4

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 5

3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 6



3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 7

About Customization:

all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.



3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 8



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements





3.5" CTP Industrial Capacitive Touch Screen 320x480 300cd/m2 TFT LCD Display Module 9
